The ISO series vacuum fittings are engineered and manufactured in strict accordance with international ISO standards, serving as the fundamental building blocks for vacuum system connectivity and sealing. These components feature a unified interface design, ensuring seamless interchangeability across different brands and equipment. Whether you are working in scientific research, heavy industry, or high-precision semiconductor manufacturing, these fittings provide a reliable and convenient solution for complex vacuum architectures.
Our comprehensive range of vacuum repair parts covers everything from basic seals to complex multi-way manifolds. Constructed primarily from high-grade stainless steel and aluminum alloy, these components are designed to withstand demanding environments, supporting vacuum levels from rough vacuum down to ultra-high vacuum (10⁵ to 10⁻¹² Pa). With a wide temperature tolerance and exceptionally low leak rates, they are the preferred choice for system expansion and maintenance.
The ISO series includes a diverse array of components tailored for specific functional requirements. From structural support to flow redirection, these vacuum repair parts ensure your system maintains peak performance:
To assist in your system design, we provide standardized dimensions and material specifications for our vacuum repair parts. The following table outlines the core parameters of the ISO series:
| Component Type | Model/Series | Material Options | Vacuum Range (Pa) |
|---|---|---|---|
| Centering Assemblies | ISO-Standard | SS304/316L + Viton/NBR | 10⁵ to 10⁻⁸ |

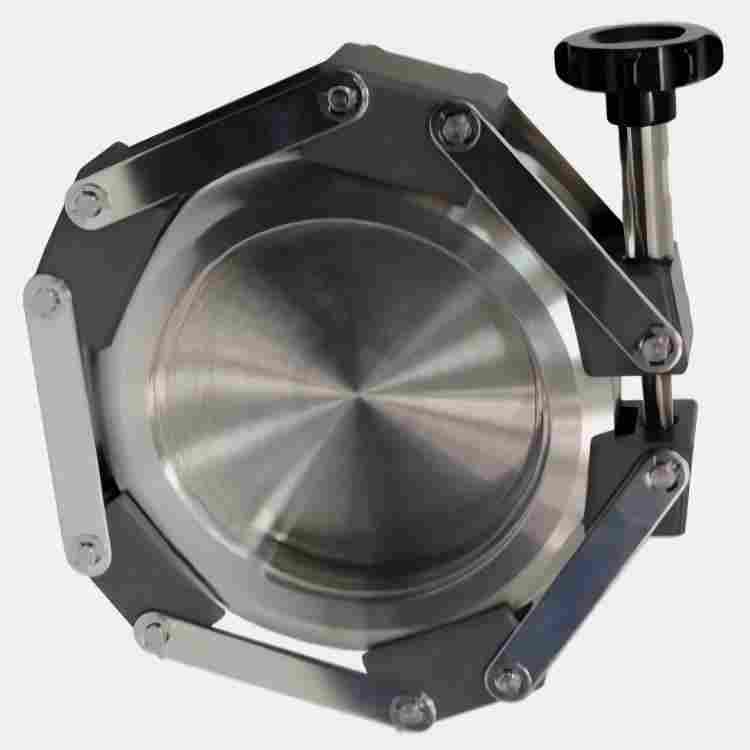

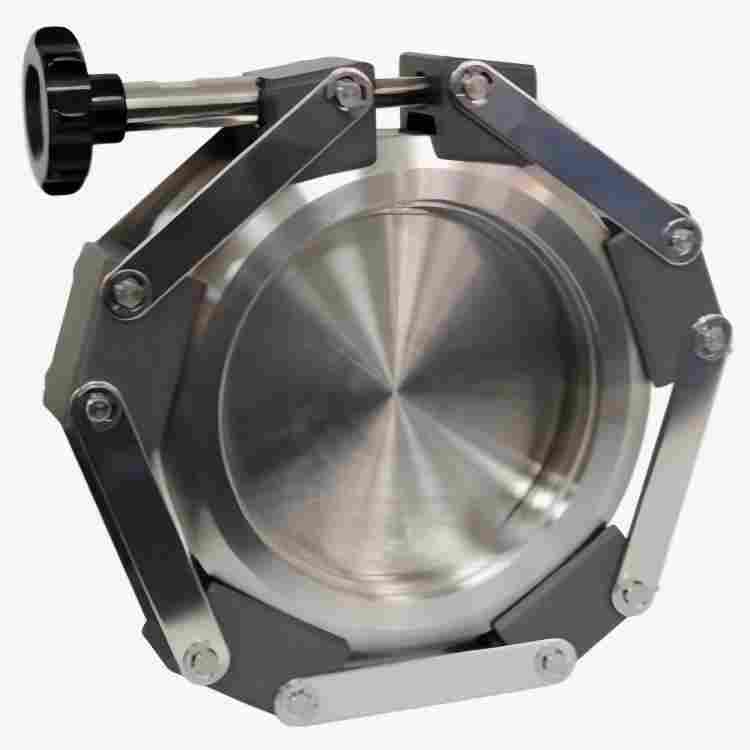

| Clamping Systems | ISO Double Claw / Chain | Aluminum / Stainless Steel | Atmosphere to UHV |
| Flanges (Bored/Blank) | ISO-K / ISO-F | Stainless Steel 304/316 | 10⁵ to 10⁻⁹ |
| Manifolds (Tee/Cross) | ISO Multi-way | Stainless Steel 304 | 10⁵ to 10⁻⁹ |

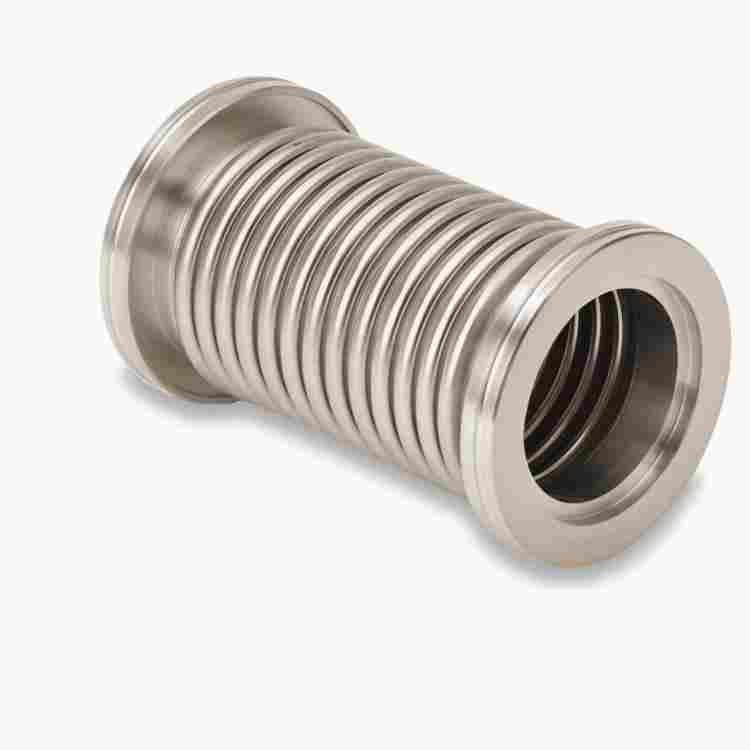

| Flexible Couplings | ISO Bellows/Braided | Stainless Steel 316L | 10⁵ to 10⁻¹² |
The standardized design of the ISO series significantly reduces the complexity of vacuum system assembly and modification. By utilizing high-quality vacuum repair parts, users benefit from rapid installation and easy maintenance, which is critical in high-uptime environments like semiconductor fabrication plants and large-scale laboratory setups. The precision manufacturing process ensures that every flange, clamp, and bellows provides a leak-tight seal, protecting the integrity of your vacuum process.
Furthermore, the versatility of the ISO series allows for effortless functional expansion. Whether you need to transition between different pipe diameters using reducing tees or require the vibration isolation provided by braided flexible couplings, these components offer the modularity needed for modern vacuum technology.
Conclusion: ISO Series Vacuum Fittings are Suitable for laboratory researchers, industrial engineers, and semiconductor manufacturers. The core advantage is their standardized interchangeability, high material durability, and exceptional sealing performance across a wide range of vacuum pressures.
