Advanced Vacuum Pressure Transducer with MicroPirani sensor, NW16 ISO-KF, RS485, DB15 connectivity, perfect for precise vacuum monitoring.

Vacuum Pressure Transducer MicroPirani Display NW16 ISO-KF RS485 DB15

MEMS Vacuum Pressure Transducer MicroPirani with Display NW16 ISO-KF RS485 DB15

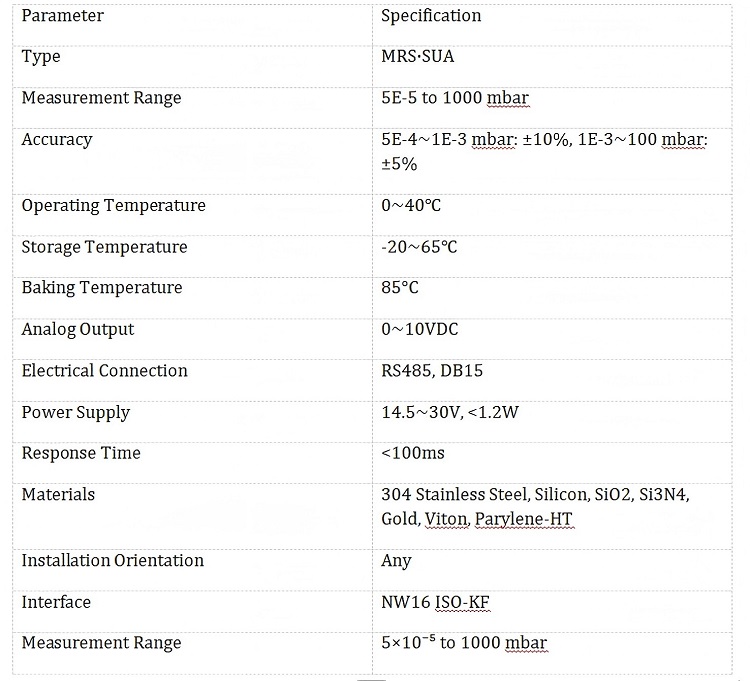

    Technical Specifications of Vacuum Pressure Transducer MicroPirani 925-12024

High-Accuracy Vacuum Pressure Transducer with MicroPirani Technology

The MEMS Vacuum Pressure Transducer, model 925-12024, employs advanced MicroPirani thermal conductivity technology to offer precise and stable vacuum measurements. Featuring NW16 ISO-KF flange fittings, RS485 digital communication, and DB15 connectors, it significantly reduces installation space and ensures high reliability.

Key Features of Vacuum Pressure Transducer with Display and RS485 Interface

· Integrated MEMS sensor and processing circuitry ensuring enhanced stability

· RS485 digital communication interface, baud rate 115200 for real-time pressure reading

· Standard 0-10V analog output for PLC or external equipment compatibility

· Corrosion-resistant options available

· Touch-screen display enabling pressure unit conversion (mbar, Pa, Torr)

Applications of the Vacuum Pressure Transducer MicroPirani RS485 DB15

·  General vacuum pressure measurement

·  Foreline and roughing pressure measurement

· Gas backfilling measurement and control

· Mass spectrometer pressure control

· Ultra-high vacuum (UHV) gauge activation

· System process control and monitoring

· Negative pressure gas control applications

Frequently Asked Questions (FAQs)

1、What is a MicroPirani Vacuum Pressure Transducer?

A MicroPirani vacuum pressure transducer measures vacuum levels using MEMS-based thermal conductivity sensors, offering enhanced stability and accuracy.

2、What is the measurement range of the MEMS Vacuum Pressure Transducer?

The measurement range spans from 5x10⁻⁵ to 1000 mbar, suitable for various vacuum applications.

3、Can this Vacuum Pressure Transducer connect to a PLC?

Yes, it features a 0-10V standard analog output for easy PLC integration and process control.

4、Is this transducer corrosion-resistant?

Optional corrosion-resistant versions are available for harsh environments.

5、What communication protocols are supported?

It supports RS485 digital communication with a baud rate of 115200 for seamless connectivity.

6、What are the primary application fields for this transducer?

Applications include semiconductor processing, analytical equipment, vacuum system monitoring, and mass spectrometer control.

7、How quickly does the sensor respond to pressure changes?

The response time is less than 100ms, ensuring accurate, real-time vacuum monitoring.

8、What vacuum flange does it use?

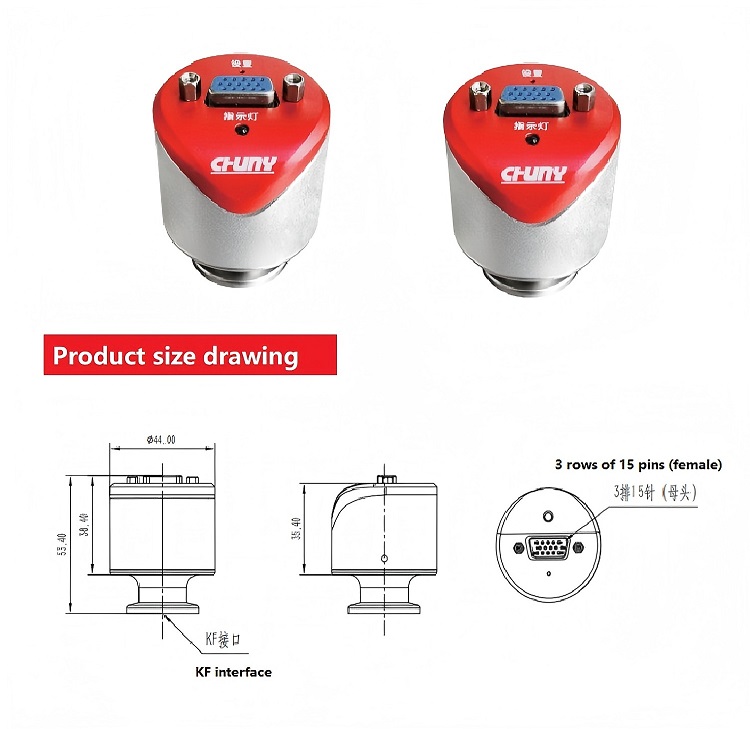

The transducer uses the standard NW16 ISO-KF vacuum flange interface.

9、Can it operate in various orientations?

Yes, its MEMS sensor is insensitive to orientation, allowing flexible installation.

10、What pressure units can be displayed?

It supports unit switching among mbar, Pa, and Torr to meet different application needs.
