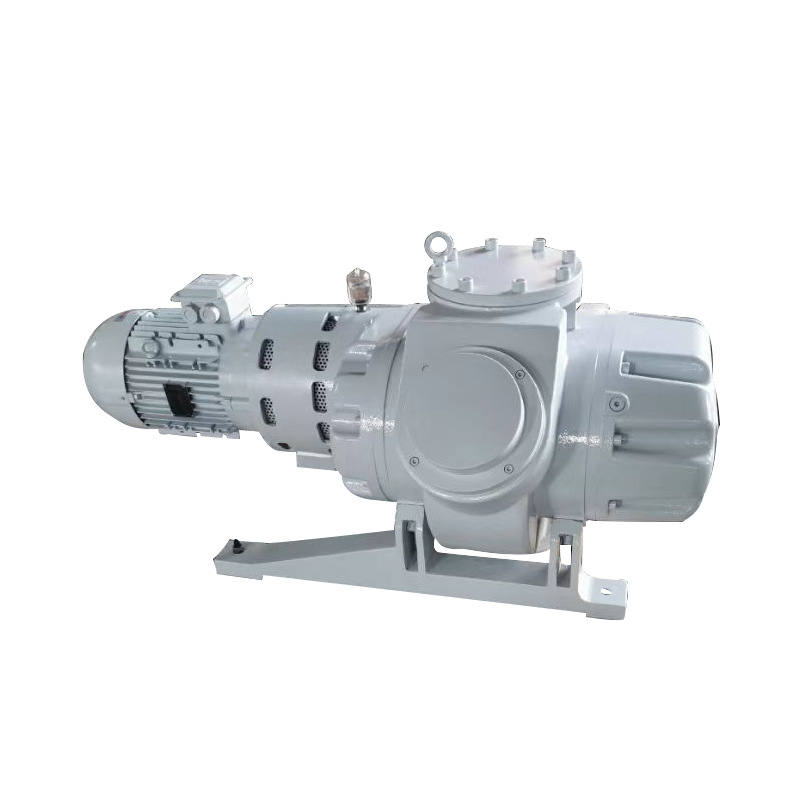

TRP-1000 Roots Booster Pump (TRP Series) Product Overview
The TRP-1000 Roots Booster Pump (TRP Series) is a high-performance vacuum solution designed for demanding industrial applications in semiconductor manufacturing, photovoltaic production, and chemical processing industries.
Oil-Free Operation: Eliminates contamination risk for clean vacuum environments
High Pumping Speed: 1000m³/h capacity for rapid evacuation
Energy Efficient: 4kW motor with optimized power consumption
Quiet Performance: Advanced design ensures low 68dB noise level
Flexible Installation: Supports both horizontal and vertical mounting
Intelligent Protection: Built-in bypass valve for overload safety
|
Parameter |
Specification |
|
Pumping Speed |
1000 m³/h |
|
Ultimate Pressure |
0.05 Pa |
|
Maximum Pressure Difference |
8000 Pa |
|
Inlet/Outlet Diameter |
100 mm |
|
Compression Ratio |
≥40 |
|
Noise Level |
68 dB(A) |
|
Motor Power |
4 kW |
|
Cooling Method |
Air Cooling |
|
Weight |
233 kg |
|
Recommended Backing Pump |
R5 RA0302D/2X-70 |
|
Operating Voltage |
320-440 V |

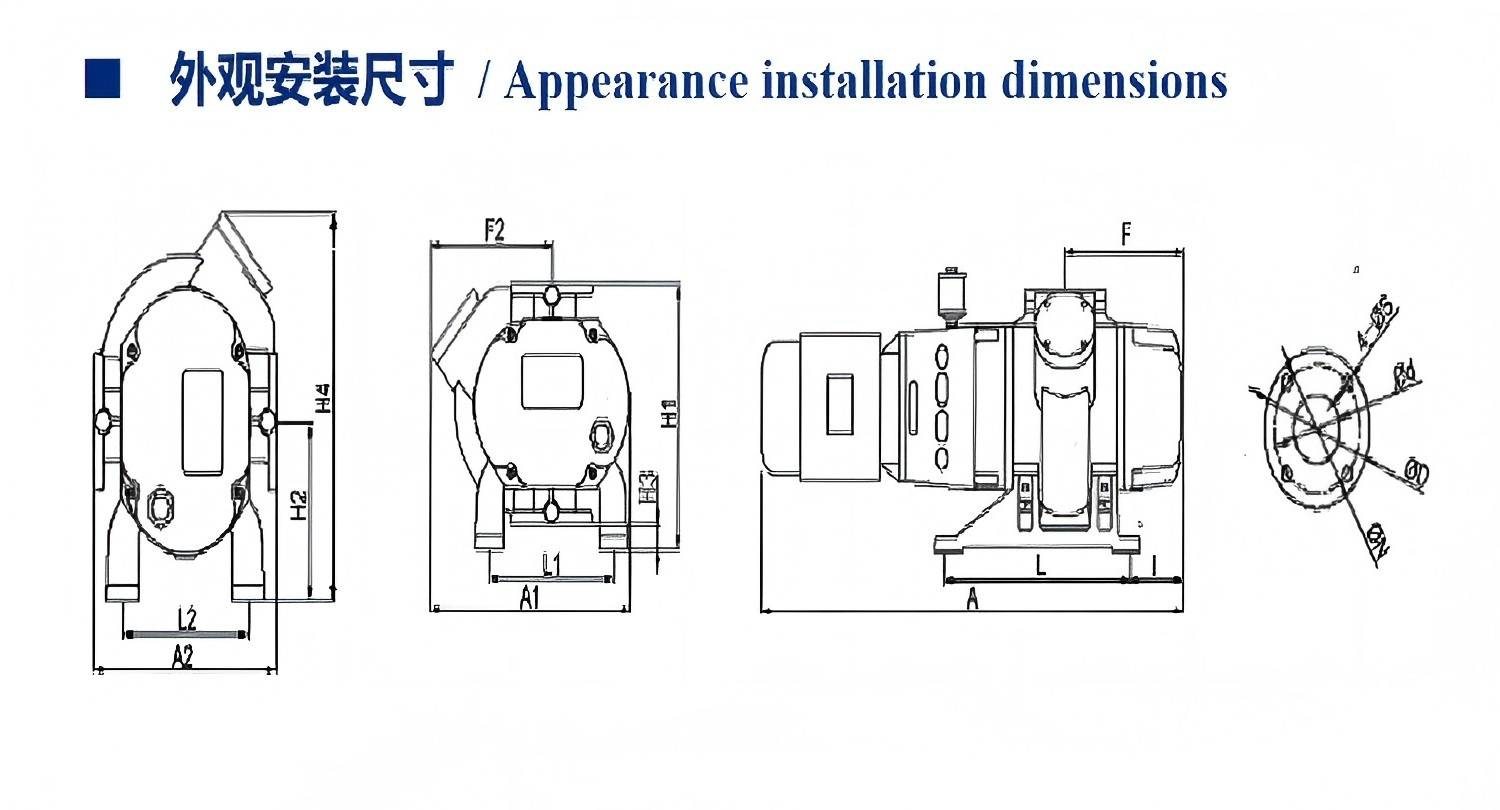

Dimensional parameter table
