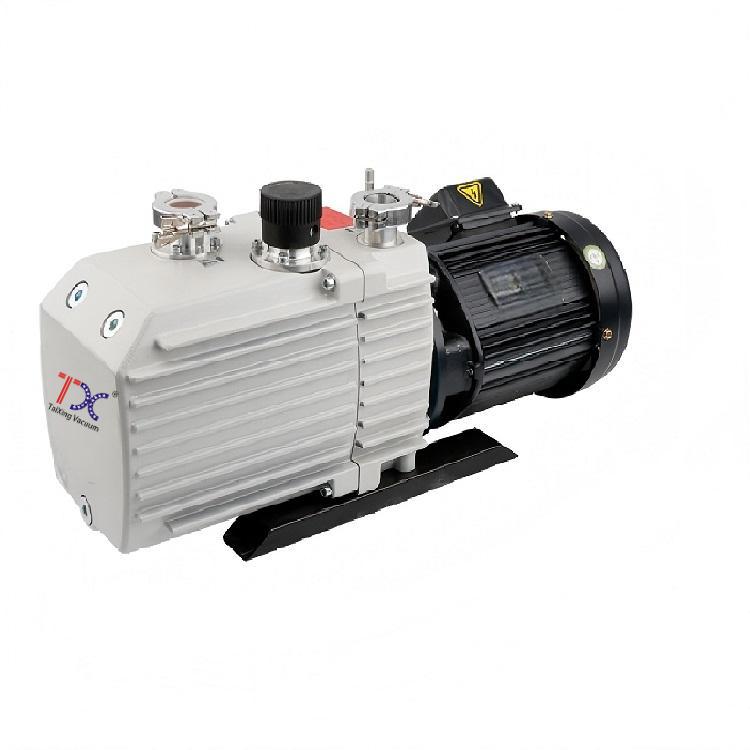

Why Choose the TX-08D Double Stage Vane Vacuum Pump?

The TX-08D from Taixing Industrial is a high-performance double stage vane vacuum pump designed for demanding vacuum applications. With a pumping speed of 8 m³/h (50 Hz) and an ultimate vacuum of 3×10⁻³ mbar, it ensures efficient and reliable vacuum generation. Featuring a low-noise level of 54 dB and a compact, lightweight design (27 kg), the TX-08D is ideal for semiconductor manufacturing, laboratory research, and industrial vacuum systems requiring precision and durability.

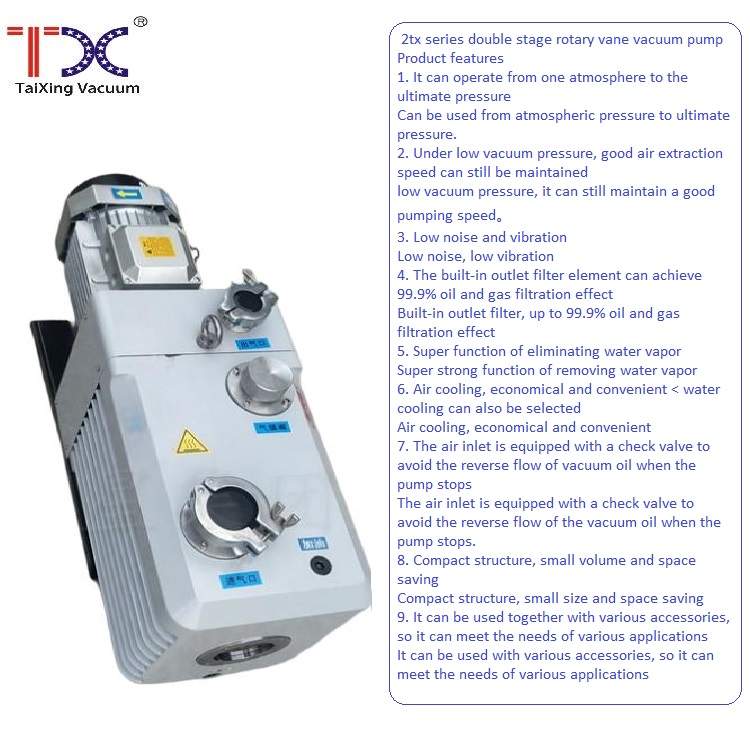

Key Features of the TX-08D Double Stage Vane Vacuum Pump

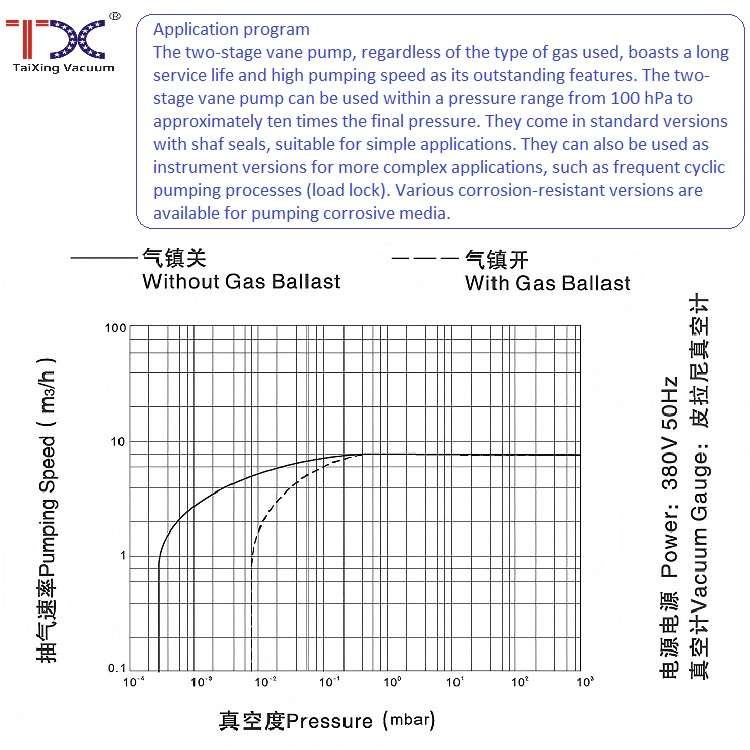

• High Pumping Speed: Achieves 8 m³/h at 50 Hz and 9.6 m³/h at 60 Hz for rapid vacuum creation.
• Ultra-Low Ultimate Vacuum: Reaches 3×10⁻³ mbar total pressure and 4×10⁻⁴ mbar partial pressure for high-precision applications.
• Low-Noise Operation: Operates at 54 dB (50 Hz) or 56 dB (60 Hz), minimizing disturbance in sensitive environments.
• Compact and Lightweight Design: Weighs only 27 kg with a total height of 272 mm and length of 500 mm, ensuring easy integration.
• Oil-Lubricated System: Uses 1.0/0.7 L oil capacity for reliable, long-lasting performance.
• High Water Vapor Tolerance: Handles up to 30 mbar of water vapor, suitable for diverse applications.
• Flexible Power Options: Supports single-phase 220V or double-phase 380V with 550W motor power.
• Wide Operating Temperature Range: Functions effectively between 5°C and 40°C.
• Standard Nominal Size: Equipped with KF25 flange for easy connection to vacuum systems.

Applications of the TX-08D Double Stage Vane Vacuum Pump

• Semiconductor Manufacturing: Provides reliable vacuum for wafer processing and cleanroom environments.
• Laboratory Research: Supports high-precision vacuum requirements in scientific experiments.
• Industrial Vacuum Systems: Ensures efficient vacuum generation for coating, drying, and material handling processes.
• Medical Equipment: Used in vacuum systems for sterilization and diagnostic devices.
• Analytical Instruments: Powers mass spectrometers and electron microscopes with stable vacuum performance.

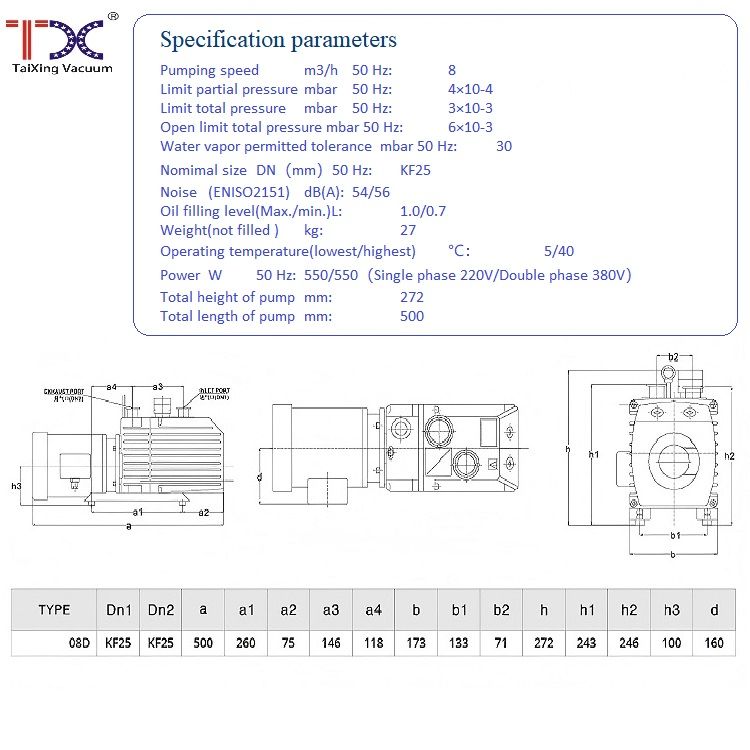

Technical Specifications

FAQ: TX-08D Double Stage Vane Vacuum Pump

• What is the purpose of this vacuum pump? It generates high vacuum for applications in semiconductor manufacturing, laboratory research, and industrial systems.
• What is the ultimate vacuum level? It achieves 3×10⁻³ mbar total pressure and 4×10⁻⁴ mbar partial pressure.
• Is it suitable for noise-sensitive environments? Yes, it operates at a low noise level of 54 dB at 50 Hz.
• What is the pumping speed? 8 m³/h at 50 Hz and 9.6 m³/h at 60 Hz.
• Can it handle water vapor? Yes, it tolerates up to 30 mbar of water vapor.
• What is the power requirement? It supports 550W at single-phase 220V or double-phase 380V.
• Is it easy to integrate into systems? Yes, its compact design and KF25 flange ensure easy installation.
• What industries is it used in? Semiconductor, laboratory, industrial, medical, and analytical instrument applications.
• Is maintenance straightforward? Yes, the oil-lubricated system and robust design minimize maintenance needs.
• Is it an OEM product? It is a high-performance product from Taixing Industrial, designed for reliability and efficiency.

Conclusion: Reliable Vacuum Performance for Critical Applications

The TX-08D Double Stage Vane Vacuum Pump delivers exceptional performance with its high pumping speed, ultra-low vacuum capability, and low-noise operation. Its compact, oil-lubricated design ensures reliability and ease of integration, making it the ideal choice for semiconductor, laboratory, and industrial vacuum applications.
