Pfeiffer 3G Ion Source Filament and Pfeiffer Helium Leak Detector Filament Repair and Replacement: An Optimal Solution

Pfeiffer 3G ion source filaments and Pfeiffer helium leak detector filaments play a crucial role in gas detection equipment. This article delves into the repair and replacement of these filaments, including working principles, unique product features, and a wide range of applicable models. Additionally, it provides answers to common questions. With original factory standard processes and high - quality yttria - doped iridium filaments, it offers reliable filament solutions for users.

Main Body

I. Product Overview

Pfeiffer 3G ion source filaments and Pfeiffer helium leak detector filaments are of great significance in gas detection equipment. This article focuses on introducing the repair and replacement of Pfeiffer 3G ion source filaments and Pfeiffer helium leak detector filaments to ensure the stable and efficient operation of your equipment.

Working Principle

When the Pfeiffer 3G ion source filament and the Pfeiffer helium leak detector filament are in operation, by utilizing their special materials and designs, electrons are emitted from the filament when an electric current passes through it. These emitted electrons interact with gas molecules in a specific electric and magnetic field environment, causing the gas molecules to ionize into ions. By detecting and analyzing these ions, the type and concentration of gases can be accurately determined.

IV. Product Features

1. ​​Original Factory Standard Processes and Quality​​: We strictly adhere to the original factory standard processes for filament production and repair/replacement. This means that the repaired filaments can match the original factory filaments in terms of performance, stability, and service life, providing reliable support for your equipment.

2. ​​Adoption of Yttria - Doped Iridium Wire​​: Yttria - doped iridium wire has the advantages of a high melting point, good electron emission performance, and chemical stability. It can maintain stable performance at high temperatures, is not prone to deformation or damage, thereby ensuring the stable operation of the filament for an extended period and improving the accuracy and reliability of detection results.

3. ​​Support for Filament Repair and Replacement​​: We not only offer brand - new Pfeiffer 3G ion source filaments and Pfeiffer helium leak detector filaments but also provide filament repair services. For some filaments with repair value, we can replace key components and other repair operations to reduce your usage costs.

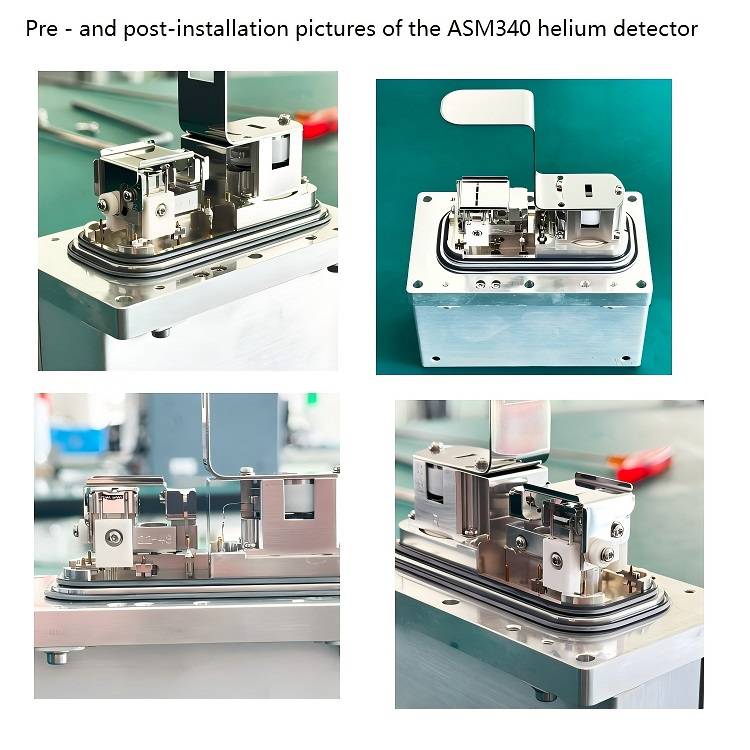

4. ​​Compatibility with Multiple Models​​: These filaments have a wide range of applications and can be matched with various Pfeiffer 3G series helium leak detectors, such as ASM340W, ASM340D, etc., and are also suitable for models like KYKY's ZQJ - 3200. No matter which device you use, you can find a suitable filament solution.

V. Application Scope

Pfeiffer 3G ion source filaments and Pfeiffer helium leak detector filaments are widely used in various fields that require high - precision gas detection. In the semiconductor manufacturing industry, they can be used to detect the gas purity and composition in the production environment to ensure the quality of semiconductor products; in the field of environmental monitoring, they can detect harmful gases in the air, providing data support for environmental protection; in scientific research laboratories, they can be used for various gas analysis and research experiments.

VI. Frequently Asked Questions

1. ​​Question​​: What is the general service life of a Pfeiffer 3G ion source filament?
​​Answer​​: The service life of the filament is affected by multiple factors, such as usage frequency and working environment. Generally, under normal use, a Pfeiffer 3G ion source filament can last for several months to one year.

2. ​​Question​​: What are the manifestations when a Pfeiffer helium leak detector filament fails?
​​Answer​​: There may be situations such as unstable detection signals, inaccurate detection results, or the equipment failing to start normally.

3. ​​Question​​: Can I just replace the filament without repairing the entire helium leak detector?
​​Answer​​: Yes. We provide a separate filament repair and replacement service to save you on repair costs.

4. ​​Question​​: Will the repaired filament have the same performance as the original factory filament?
​​Answer​​: We strictly follow the original factory standard processes for repair and replacement. The repaired filament can approach or even reach the level of the original factory filament in terms of performance.

5. ​​Question​​: Is the KYKY ZQJ - 3200 suitable for using your Pfeiffer 3G ion source filament?
​​Answer​​: The filaments we provide are adapted. They are suitable for models such as KYKY ZQJ - 3200, so you can use them with confidence.

6. ​​Question​​: What are the advantages of yttria - doped iridium wire?
​​Answer​​: Yttria - doped iridium wire has the advantages of a high melting point, good electron emission performance, and chemical stability. It can operate stably at high temperatures, improving the service life of the filament and the accuracy of detection results.

7. ​​Question​​: How long does it take to repair a filament?
​​Answer​​: Generally, a simple filament replacement and repair can be completed within [X] working days. The specific time will depend on the actual situation.

8. ​​Question​​: How can I determine if the filament needs to be replaced?
​​Answer​​: If there are abnormal detection signals, large deviations in detection results, or the equipment reports fault codes related to the filament, it may be time to consider replacing the filament.

9. ​​Question​​: Can the Pfeiffer helium leak detector ASM392 filament be repaired?
​​Answer​​: Yes. We support the repair and replacement of filaments for multiple models of Pfeiffer helium leak detectors, including the ASM392.

10. ​​Question​​: How to judge whether the filament needs to be replaced?
​​Answer​​: If there are abnormal detection signals, large deviations in detection results, or the equipment reports fault codes related to the filament, it may be necessary to consider replacing the filament.

Choosing us for the repair and replacement of Pfeiffer 3G ion source filaments and Pfeiffer helium leak detector filaments means choosing professionalism, reliability, and efficiency. We will wholeheartedly provide you with high - quality services to ensure that your equipment is always in the best operating condition.
