The KC series high vacuum oil diffusion pump is an ideal device for fields such as vacuum heat treatment, brazing, and vacuum coating, featuring a wide working range, high critical foreline pressure, and low backstreaming rate. Learn about its technical parameters, product advantages, and FAQs to choose a high-quality high vacuum solution.

This article provides a detailed introduction to the technical parameters, product advantages, application cases, and FAQs of the KC series high vacuum oil diffusion pump, focusing on its high-performance design and wide applicability, offering efficient solutions for industries such as vacuum heat treatment, brazing, and vacuum coating.

Product Advantages and Applications of KC Series High Vacuum Oil Diffusion Pump

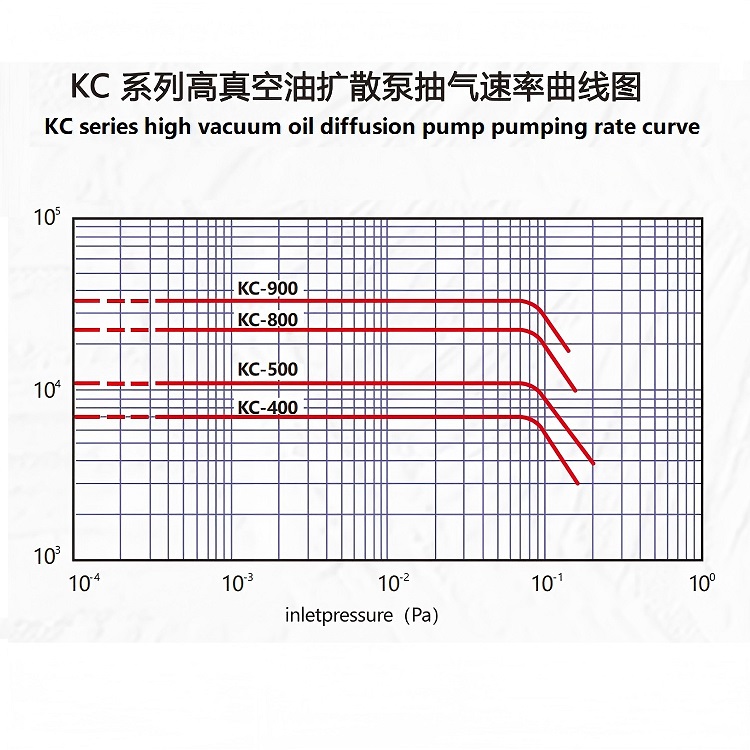

Wide Working Range: Maintains a high pumping speed even at 1.3x10⁻¹Pa, suitable for various vacuum requirements.

High Critical Foreline Pressure: Up to 75Pa under full load, ensuring stable and reliable performance.

Low Backstreaming Rate: Only 1.5x10⁻³mg/cm²·min, reducing contamination risks.

Quick Start: Equipped with a standard oil level observation device for easy operation.

Wide Applicability: Suitable for vacuum heat treatment, brazing, vacuum coating, and more.

Application Case

Application Field: Vacuum Coating

Equipment Used: KC-800 High Vacuum Oil Diffusion Pump

Process Flow: In the optical coating process, the KC-800 provides a stable high vacuum environment, ensuring coating uniformity and quality.

Equipment Installation

Detailed instructions on how to properly install the KC series high vacuum oil diffusion pump, including selecting the installation location, connecting pipelines, and debugging steps to ensure stable and efficient operation. Professional installation guidance from manufacturers is recommended.

Frequently Asked Questions (FAQs) about KC Series High Vacuum Oil Diffusion Pump

What is the ultimate pressure of the KC series high vacuum oil diffusion pump?
Answer: The ultimate pressure is ≤5×10⁻⁵Pa, suitable for high vacuum environments.

What is the backstreaming rate of the KC series high vacuum oil diffusion pump?
Answer: The backstreaming rate is ≤1.5×10⁻³mg/cm²·min, effectively reducing contamination.

How to choose the right model of the KC series high vacuum oil diffusion pump?
Answer: Select the appropriate model based on pumping speed, ultimate pressure, and working environment requirements. Consult professional manufacturers for guidance.

What are the key points for daily maintenance of the KC series high vacuum oil diffusion pump?
Answer: Regularly check the oil level, clean the pump body, and ensure the cooling water system operates normally.

Is the KC series high vacuum oil diffusion pump compatible with other brands of foreline pumps?
Answer: Compatibility depends on the interface size and specifications. Consult the manufacturer for confirmation.

How does the KC series high vacuum oil diffusion pump perform in high vacuum applications?
Answer: It performs excellently in high vacuum environments, with high pumping speed and stable performance.

How to address noise issues in the KC series high vacuum oil diffusion pump?
Answer: Check if the pump oil is sufficient, ensure the cooling water system is normal, and lubricate or replace parts if necessary.

What is the energy efficiency ratio of the KC series high vacuum oil diffusion pump?
Answer: With its efficient heating system, it offers a high energy efficiency ratio and low operating costs.

How durable is the KC series high vacuum oil diffusion pump?
Answer: Made from high-quality materials and precision manufacturing processes, it has a long service life and is suitable for high-intensity working environments.

How to evaluate the total cost of ownership of the KC series high vacuum oil diffusion pump?
Answer: Consider the equipment price, maintenance costs, energy consumption, and pump oil replacement frequency for evaluation. Choose products from reliable manufacturers for cost-effectiveness.

Through this article, readers can gain a comprehensive understanding of the performance, applications, and maintenance of the KC series high vacuum oil diffusion pump, providing professional guidance for selection and usage, while recommending high-quality manufacturers to ensure product quality and service support.
