KT Series High Vacuum Oil Diffusion Pump - High-Efficiency Vacuum Solution for Ultra-High Vacuum Applications

In modern industrial production and scientific research, obtaining a high-vacuum environment is crucial. The KT series high-vacuum oil diffusion pumps have become the preferred equipment for many enterprises and research institutions to achieve high and ultra-high vacuum conditions due to their outstanding performance. This article will provide a comprehensive introduction to the KT series high-vacuum oil diffusion pumps, including product features, technical specifications, application cases, and frequently asked questions, aiming to offer you a complete and in-depth understanding of the product.

The KT series high-vacuum oil diffusion pumps are key devices for obtaining high and ultra-high vacuum conditions with a vacuum level of 10⁻² to 10⁻⁵ Pa. Designed with a convex chamber structure, these pumps offer a 30% higher pumping speed compared to the K series and are widely used in scientific research, semiconductor, and vacuum coating industries to help users achieve efficient and stable vacuum environments.

This article provides a comprehensive introduction to the KT series high-vacuum oil diffusion pumps, covering product features, technical specifications, application cases, and frequently asked questions. With their high pumping speed and excellent performance, these pumps have become the ideal choice for obtaining high and ultra-high vacuum conditions and are widely used in scientific research and industrial production.

KT series high-vacuum oil diffusion pumps, high-vacuum pumps, ultra-high vacuum pumps, vacuum equipment, vacuum pumps for scientific research, industrial vacuum pumps, vacuum pumps for coating, vacuum pumps for semiconductors, high-vacuum technology, ultra-high vacuum technology

Product Features

The KT series high-vacuum oil diffusion pumps are specifically designed to meet the needs of high and ultra-high vacuum conditions. They feature an advanced convex chamber structure, which offers a 30% higher pumping speed compared to traditional K series pumps. These pumps are compact, stable in operation, and capable of rapidly achieving extremely low vacuum levels while also being energy-efficient. Moreover, they are equipped with high-quality KS-3 or 275# silicone oil to ensure stable performance during long-term operation.

Application Cases

Vacuum Coating Industry

In vacuum coating processes, the KT series high-vacuum oil diffusion pumps can quickly create a stable high-vacuum environment, ensuring the uniformity and high quality of the coating. For example, an optical lens manufacturing company used the KT-300 model to successfully achieve high-precision optical coating, significantly improving the reflectivity and transmittance of the products.

Semiconductor Manufacturing

The semiconductor industry has extremely high requirements for vacuum conditions. The KT series high-vacuum oil diffusion pumps, with their excellent ultimate vacuum and high pumping speed, provide reliable vacuum support for semiconductor chip manufacturing. A well-known semiconductor company used the KT-600 model to effectively increase the yield of chip manufacturing.

Scientific Research

In the field of scientific research, the KT series high-vacuum oil diffusion pumps are widely used in physical experiments and material research. For example, in a university's material laboratory, the KT-200 model provided a stable high-vacuum environment for the synthesis of high-temperature superconducting materials, helping researchers achieve significant breakthroughs.

Frequently Asked Questions

1、What is the ultimate vacuum of the KT series high-vacuum oil diffusion pumps?

The ultimate vacuum of the KT series high-vacuum oil diffusion pumps can reach ≤5×10⁻⁵ Pa, meeting the needs of high and ultra-high vacuum environments.

2、What are the advantages of the KT series pumps compared to traditional K series pumps?

The KT series pumps feature a convex chamber design, offering a 30% higher pumping speed compared to traditional K series pumps, with more efficient and stable operation.

3、What is the cooling water consumption of the KT series pumps?

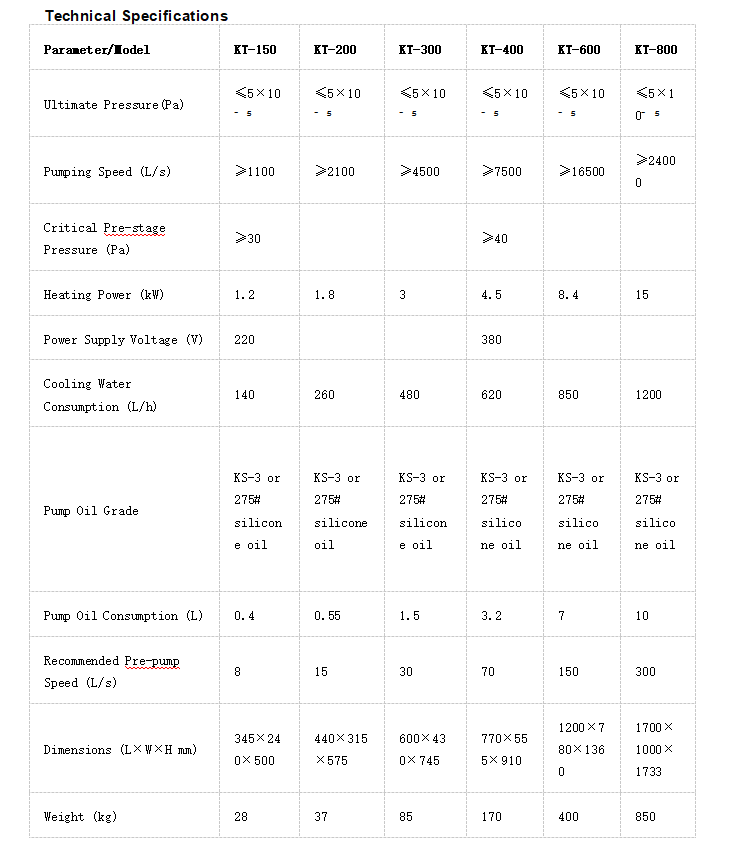

The cooling water consumption of different KT series pumps varies, ranging from 140 L/h to 1200 L/h. Specific values can be found in the technical specifications table.

4、Are the KT series pumps suitable for long-term continuous operation?

Yes, the KT series pumps are designed for long-term stable operation and are suitable for continuous use in industrial production and scientific research.

5、What types of pump oil are recommended for the KT series pumps?

The KT series pumps recommend the use of KS-3 or 275# silicone oil, which have good chemical and thermal stability.

6、What is the power supply voltage for the KT series pumps?

The power supply voltage for the KT series pumps varies by model, with some models using 220V and others using 380V.

7、What is the pumping speed range of the KT series pumps?

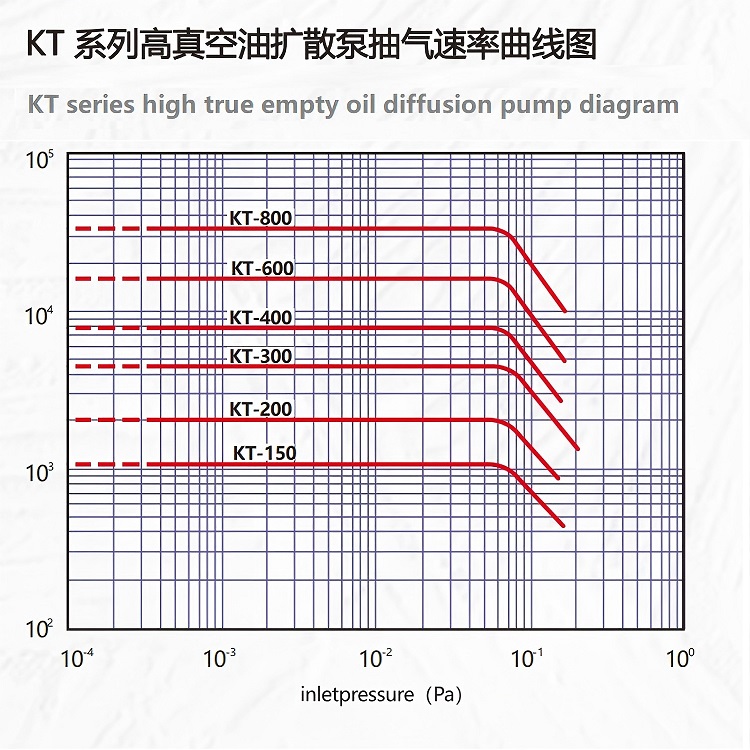

The pumping speed range of the KT series pumps is from ≥1100 L/s to ≥24000 L/s, meeting the vacuum needs of different scales.

8、What are the dimensions and weight of the KT series pumps?

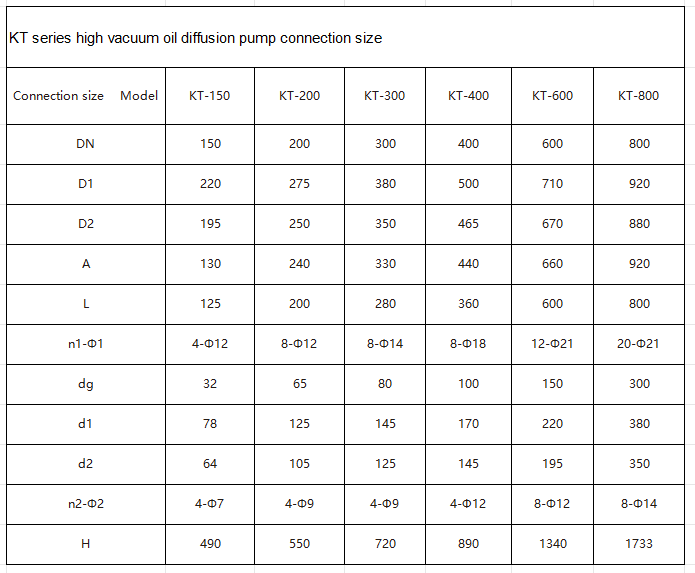

The dimensions and weight of the KT series pumps vary by model, from the small KT-150 to the large KT-800. Specific parameters can be found in the technical specifications table.

9、What are the pre-pump speed requirements for the KT series pumps?

To ensure the efficient operation of the KT series pumps, the recommended pre-pump speed ranges from 8 L/s to 300 L/s. Specific values can be found in the technical specifications table.

10、What fields are the KT series pumps applicable to?

The KT series high-vacuum oil diffusion pumps are widely used in scientific research, semiconductor manufacturing, vacuum coating, material research, and other fields, meeting the high-vacuum needs of various industries.

Conclusion

With their outstanding performance and efficient, stable operation, the KT series high-vacuum oil diffusion pumps have become the ideal choice for obtaining high and ultra-high vacuum conditions. Whether in scientific research, semiconductor manufacturing, or vacuum coating, the KT series pumps can provide reliable vacuum solutions. If you are interested in the KT series high-vacuum oil diffusion pumps or have any questions, please feel free to contact us. We will provide you with professional technical support and services.
