Pumping speed :
15m3/HOverview

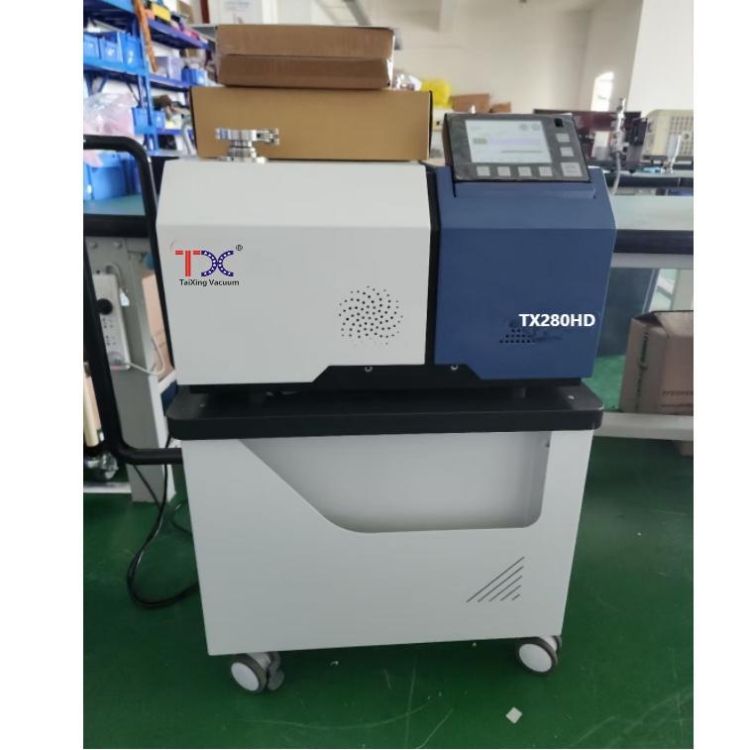

The TX 280H is a high performance cart-mounted helium mass spectrometer leak detector designed for detecting tiny leaks in complex environments.
Ferture
· High sensitivity : The detection limit reaches 1.0E-12 mbar·l/s.
· Fast response : response time is less than 0.5 seconds.
· Multiple pump options : Supports a variety of vacuum pump configurations to improve pumping efficiency.
|
Minimum detectable leak rate He4 |
5.0E-13Pa.m3/s (vacuum) |
≤ 5.0E-9Pa.m3/s (inhalation) |
|
|
Response time |
≤ 0.5 sec |
||
|
Start Time |
≤3 minutes |
||
|
Molecular pump pumping speed He |
2.5 L/s (Hicube 80) |
||
|
Backing vacuum pump pumping speed
|
Oil-free scroll vacuum pump
|
8L/s;(Iwata 500C/ A gilent TS600);30m³/h |
|
|
4L/s;(Iwata 250C/ A gilent TS300);15m³/h |
|||
|
Oil type rotary vane vacuum pump |
6L/s;( TX2 24 etc.);24 m³/h |
||
|
Detectable gas |
Helium 4/Helium 3/Hydrogen |
||
|
Units of measurement |
Pa.m3/s, mbar.l/s, Torr.l/s, PPm |
||
|
source of ion |
Yttrium oxide iridium wire (two pieces) |
||
|
Mass spectrometry room |
180° Inhomogeneous Magnetic Deflection Mass Spectrometry |
||
|
Calibrated leak |
Channel type -7mbar.l/s (built-in leak) |
||
|
Communication Interface |
RS232/Input and Output |
||
|
language |
Chinese/English/Russian |
||
|
working environment |
Temperature 5~40℃ Humidity ≤80% |
||
|
Power supply |
AC220V±10 |
||
|
weight |
About 98 Kg |
||
|
size |
869mm*406mm*926mm |
||
Innovation and functionality
· Wireless Control : Equipped with wireless remote control and Bluetooth APP remote control function, with a wide operating range.
· Automatic calculation : suitable for detection in high helium concentration environments.
Device Configuration
· Molecular pump speed : 2.5 L/s
· Backing vacuum pump : Oil-free scroll vacuum pump or oil-filled rotary vane vacuum pump , depending on the configuration.
Application
It is widely used in pressure vessels, pipeline installations, automotive industry, aerospace and vacuum systems.
| Aerospace Leak Testing |
| Automotive Leak Detection |
| HVAC System Leak Testing |
| Medical Device Leak Testing |
| Refrigeration System Leak Detection |
| Semiconductor Manufacturing |
| Power Plant Leak Detection |
| Vacuum System Integrity Testing |
| Pharmaceutical Industry Leak Testing |
| Oil and Gas Industry Leak Detection |
| Electronics Manufacturing Leak Testing |
| Research Laboratory Vacuum Systems |
| Food Packaging Industry Leak Detection |
| Environmental Chamber Leak Testing |
| Industrial Equipment Leak Testing |
| Plumbing System Leak Detection |
| Automated Production Line Leak Testing |
| Vacuum Furnace Leak Detection |
| Solar Panel Manufacturing Leak Testing |
| Battery Manufacturing Leak Detection |
Additional features and accessories

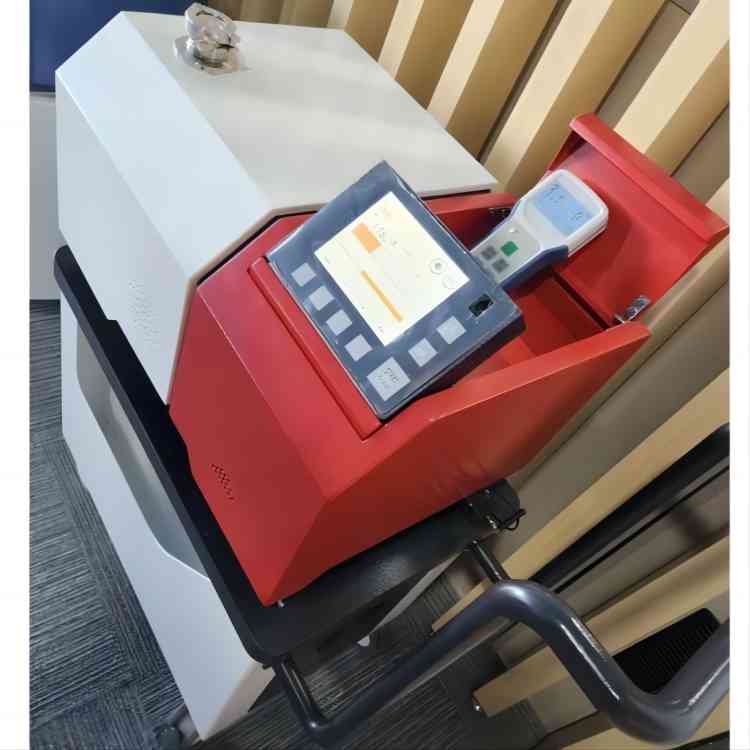

Optional wireless remote control and Bluetooth touch handle can enhance operational flexibility.
Helium Mass Spectrometer Leak Detector TX280H:
