Customizable TLDB-085 Leak Detector for Vacuum and Aerospace Made in China

The TLDB-085 semi-automatic leak detection box offers high-precision helium and vacuum leak detection for chip packaging and small workpieces. With 1.0E-12 mbar·L/s sensitivity, 304 stainless steel construction, and compatibility with KF40/KF25/KF16 interfaces, it’s ideal for semiconductor, aerospace, and medical applications.

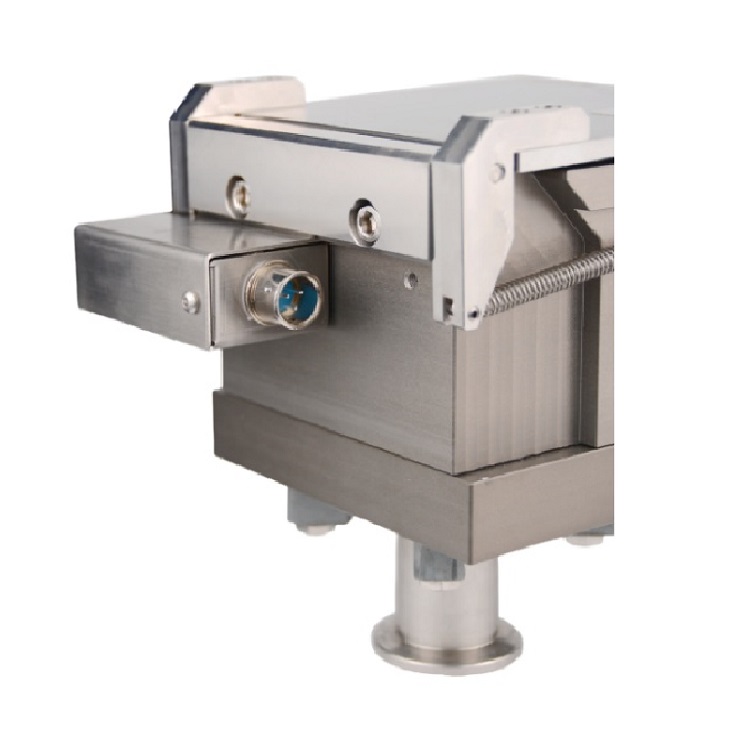

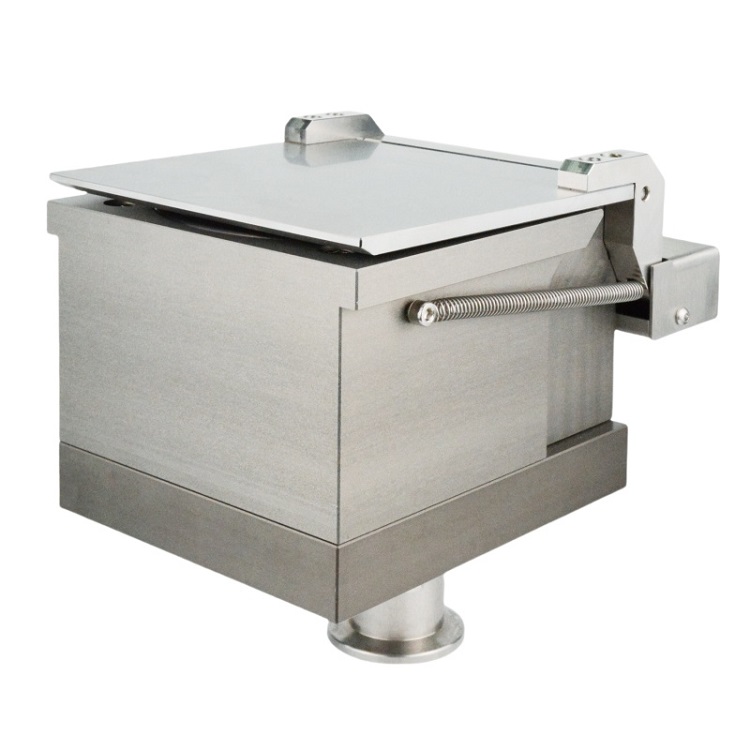

The TLDB-085 Semi-automatic Leak Detection Box is engineered for high-precision leak detection in chip packaging, vacuum systems, and small workpieces. Supporting helium (HE3/HE4) and hydrogen (H2) pressurization, it achieves an industry-leading minimum detectable leak rate of 1.0E-12 mbar·L/s. Constructed from durable 304 stainless steel, the system features standard KF40, KF25, and KF16 interfaces, with customizable options for compatibility with all major leak detector brands. Its intelligent communication system triggers automatic detection upon chamber closure, enhancing efficiency. Ideal for semiconductor manufacturing, aerospace, medical instruments, and materials science, the TLDB-085 ensures reliable sealing performance and adapts to complex detection scenarios. Internal dimensions: 82 mm diameter, 70 mm height; external dimensions: 115 mm × 160 mm × 105 mm.

1. Technical Parameters

.

1、 Product Overview The semi-automatic leak detection box is designed for high-precision leak detection in chip packaging and small workpieces. It supports helium-pressurization and vacuum leak detection methods, offering both semi-automatic and manual operation modes to meet diverse industrial needs. The system ensures reliable sealing performance and adapts to various applications.

2、 Technical Highlights 2.1 Intelligent Communication The semi-automatic model communicates directly with the leak detector. Once the chamber cover is closed, the leak detection process starts automatically, enhancing operational efficiency.

   3、 Interface Adaptability Equipped with standard interfaces (KF40, KF25, KF16) and supporting customized options, the system is compatible with leak detectors from multiple brands.

   4、High Sensitivity The system achieves a minimum detectable leak rate of 1.0E-12 mbar·L/s, ensuring precise detection of even the smallest leaks.

   5、Customization Support Fully customizable, the leak detection box adapts to various workpieces and complex detection scenarios.

   6、 Process and Material Constructed from 304 stainless steel using a full-stainless-steel process, the box is durable and designed for a long service life.

7、 Application Areas 3.1 Semiconductor Industry Ensures airtightness in chip manufacturing and packaging, guaranteeing stable chip performance.

 Vacuum Systems Accurately assesses sealing performance of vacuum equipment, maintaining a stable vacuum environment.

 Aerospace, Medical, and Materials Science Provides reliable sealing detection for critical components in aerospace, medical instruments, and materials science research.

FAQ: TLDB-085 Leak Detection Box

1. What is the purpose of the TLDB-085 leak detection box?
It detects leaks in chip packaging, vacuum systems, and small workpieces using helium or vacuum methods to ensure sealing integrity.

2. Which leak detectors is it compatible with?
It supports all major leak detector brands via KF40, KF25, KF16, or customized interfaces.

3. What is the sensitivity of the TLDB-085?
It detects leaks as small as 1.0E-12 mbar·L/s.

4. Can it be used in manual mode?
Yes, it offers both semi-automatic and manual operation modes for flexibility.

5. What materials is the box made from?
It is constructed from durable 304 stainless steel for corrosion resistance.

6. Is it customizable for specific workpieces?
Yes, the TLDB-085 supports full customization for various workpieces and detection scenarios.

7. What gases can it use for leak detection?
It supports HE3, HE4, and H2 gases.

8. How does the semi-automatic mode work?
The system communicates with the leak detector and starts testing automatically when the chamber cover is closed.

9. Is it suitable for aerospace applications?
Yes, it provides reliable leak detection for critical aerospace components.

10. What are the dimensions of the TLDB-085?
Internal: 82 mm diameter, 70 mm height; External: 115 mm × 160 mm × 105 mm.

Conclusion: Precision Leak Detection for Critical Applications

The TLDB-085 semi-automatic leak detection box delivers unmatched precision and reliability for leak testing in semiconductor manufacturing, vacuum systems, aerospace, medical devices, and materials science. With its ultra-high sensitivity, durable stainless steel construction, and versatile compatibility with standard and customized interfaces, it ensures optimal sealing performance in demanding environments. The TLDB-085 is the ideal choice for industries requiring robust, efficient, and adaptable leak detection solutions.
