Permanent magnet frequency conversion energy-saving vacuum pump

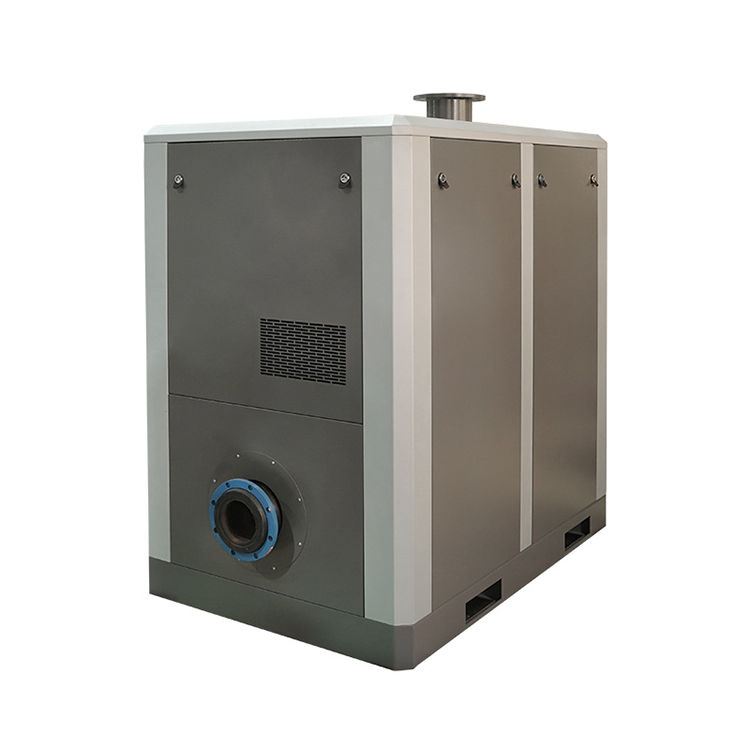

11kw double frequency conversion energy-saving integrated TX30-11PM permanent magnet frequency conversion vacuum pump
11kw double frequency conversion energy-saving integrated TX30-11PM permanent magnet frequency conversion vacuum pump
11kw double frequency conversion energy-saving integrated TX30-11PM permanent magnet frequency conversion vacuum pump
11kw double frequency conversion energy-saving integrated TX30-11PM permanent magnet frequency conversion vacuum pump

11kw double frequency conversion energy-saving integrated TX30-11PM permanent magnet frequency conversion vacuum pump

11kw double frequency conversion energy-saving integrated TX30-11PM permanent magnet frequency conversion vacuum pump

1. Characteristics



Save more than 35% of the electricity

● Permanent magnet / frequency conversion adjustment principle

Permanent magnet frequency conversion dual-stage vacuum pump is to adjust the speed of the vacuum pump drive according to the actual gas consumption change, and the energy is effectively saved, energy saving and environmental protection

Intelligent control, effectively improve work efficiency

● low noise

Not afraid of equipment interference when working. Low-noise process 65DB~78DB. Low noise, high power. Noisy away from the working environment damages ear health

● atmospheric volume

Full of power and stable performance

● all-in-one host

Volume and weight are far less than the ordinary motor assembly

● Motor high efficiency and low temperature rise

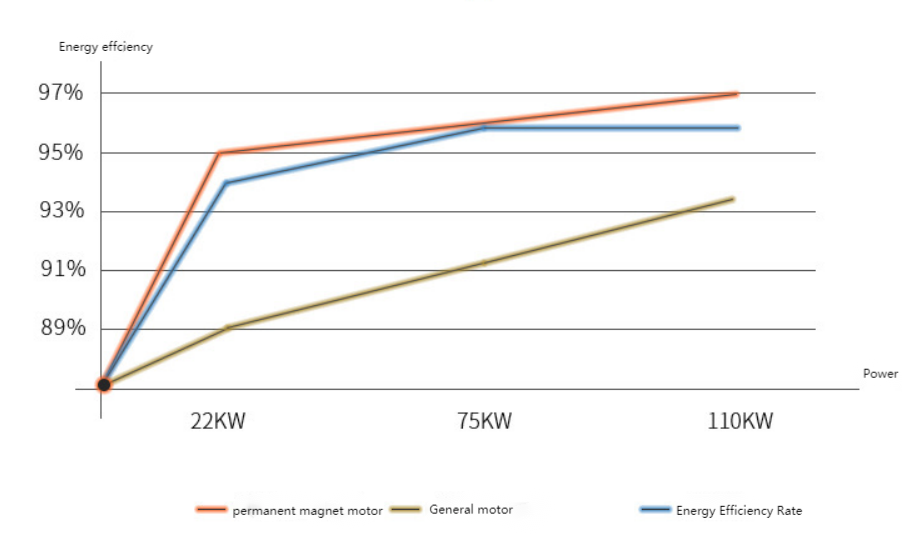

The efficiency of permanent magnet frequency conversion motor is 3% -8% higher than that of ordinary motor

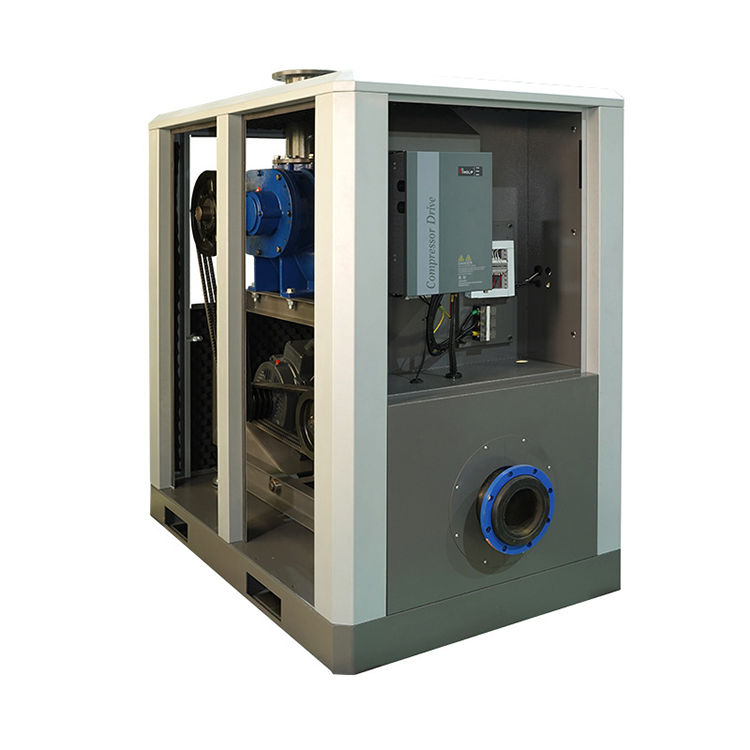

2. Structural details

01 Oil-free host

 OIL FREE MAIN ENGINE

Using large rotor low speed, comprehensive sealing oil seal, no wear maze, super temperature coating design, high temperature operation life!



02 Permanent magnet motor

OIL FREE MAIN ENGINE

High temperature stable magnetic materials, low demagnetization risk, can achieve soft start, the operation is the motor current will not exceed the full load current



03 Intelligent control

 OIL FREE MAIN ENGINE

Intelligent real-time monitoring, improve the operability of vacuum pump, equipped with 485 interface, to realize remote and interlock.



04 Air filter

 OILFREE MAIN ENGINE

Pre-filter design, keep the interior of the machine clean, extend the maintenance cycle, disassembly and clean, can be reused.



05 Intelligent frequency converter

 OIL FREE MAIN ENGINE

Support the connected control program, reduce the system networking cost, the full power section built-in DC reactor, can protect the performance, to meet the power grid instability, low voltage occasions.



06 Sensor

OIL FREE MAIN ENGINE

The signal processing adopts 0.01% conditioning circuit technology, strictly tests the transmitter with high accuracy, good stability, strong anti-interference ability, protection grade IP65



07 Silent exhaust

 OIL FREE MAIN ENGINE

Cooling fan frequency conversion control, control the fan speed according to the exhaust temperature, inhibit power waste, stabilize the system and the overall component temperature, improve the durability of the components.





3. application area

Suitable for more fields, to meet a number of industries. For example, electronic manufacturing industry, plastic absorption industry, paper industry, printing industry, photoelectric industry, textile factory industry, paper support industry, sewage treatment and so on.

Technical parameter:

Model Pressure(Kpa) volume flow
(M3/min)
Power
(kw)
power source control mode Noise
level(db)
Weight(kg) Dimensions (mm) Air intake dimensions
(DN)
 TX30-7.5PM -50~-90 7.8 7.5kw 380V
415V
3PH
50HZ
60HZ
Variable frequency intelligent control 70±3 460 1150×750×1200 100
TX30-11PM 11.03 11kw 75±3 500 1150×750×1200 100
TX30-15PM 15.8 15kw 75±3 900 1300×850×1400 125
TX30-18PM 19.83 18kw 78±3 900 1300×850×1400 125
TX30-22PM 23.59 22kw 78±3 1300 1400×950×1480 150
TX30-30PM 34.05 30kw- 78±3 1500 1400×950×1480 150
TX30-37PM 42 37kv 80±3 1750 1650×1350×1600 200
TX30-45PM 51.88 45kw 83±3 2100 1650×1350×1600 200
TX30-55PM 63.58 55kw 85±3 2300 1760×1480×1700 200
TX30-75PM 85.77 75kw 86±3 2500 1760×1480×1700 200
TX30-90PM 102.93 90kw 88±3 3200 2000×1400×2050 250
TX30-110PM 125.8 110kw 90±3 3400 2000×1400×2050 300
