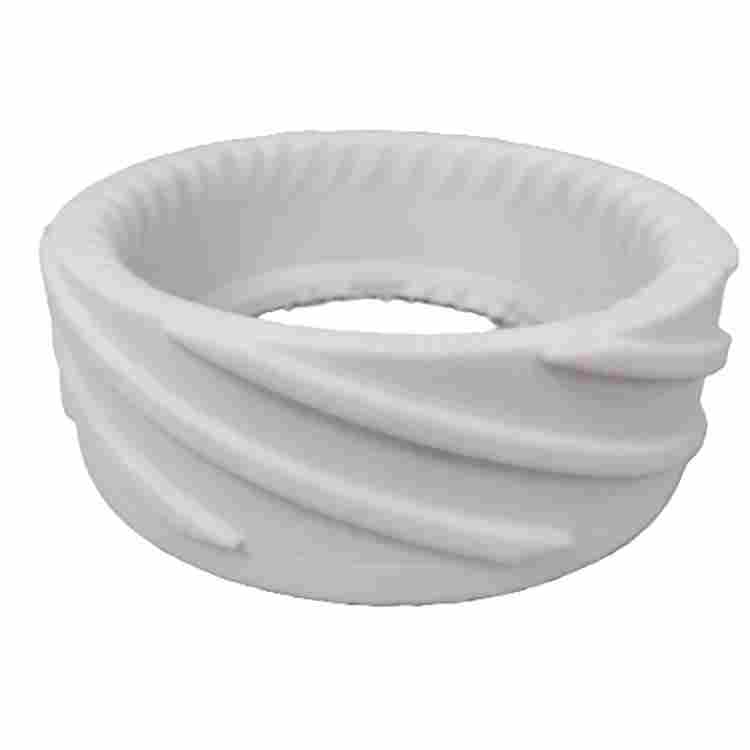

Shimadzu Screw Stator 3000 Original Parts Repair for TMP 3203 3403 Series Molecular Pump

The Screw Stator 3000 is an OEM repair component designed for Shimadzu turbomolecular pump series TMP-3203 through TMP-3403 and is dimensionally compatible across the wider SHIMADZU TMP-2003–3603 family. Manufactured to meet original equipment tolerances, this stator element restores internal clearances and surface geometry that are critical for stable high-speed rotor operation and optimal vacuum performance.

Key features

• Direct replacement for Shimadzu Screw Stator 3000 — engineered for seamless fit in TMP-3203~3403 models.
• Precision machining and tight manufacturing tolerances to preserve rotor/stator clearance and reduce leak paths.
• High-grade materials selected for dimensional stability under thermal cycling and long service life.
• Surface finishes and coatings appropriate for vacuum service to limit outgassing and particulate generation.
• Supplied as an original-equivalent repair part suitable for workshop rebuilds or field swaps.

Compatibility

Applicable models (representative): SHIMADZU TMP-2003 through TMP-3603, specifically intended for TMP-3203 ~ TMP-3403 series rebuilds and component-level repairs. If you need confirmation for a particular model or serial number, provide the pump nameplate data for verification.

Materials & manufacturing

The Screw Stator 3000 is produced using vacuum-compatible metallurgy and industry-standard machining practices. Critical surfaces are finished to reduce friction and particle generation; parts are cleaned and packaged in a clean environment to preserve integrity prior to installation. Where applicable, anti-corrosion or low-friction coatings are applied according to OEM specifications.

Installation & fitment guidance

• Handle with clean gloves to avoid contamination; ensure the pump internals are free of debris prior to assembly.
• Follow the pump manufacturer's rebuild sequence—align stator features carefully and avoid forcing parts that do not seat smoothly.
• Do not attempt to machine or modify the stator without engineering approval; any alteration can compromise vacuum performance and rotor balance.
• After assembly, perform recommended leak checks, spin/balance verification and run-in procedures per Shimadzu service instructions.

Inspection & maintenance

• Inspect the stator for scoring, abrasion or deformation whenever the pump is opened for service.
• Replace the stator if wear increases rotor/stator clearance beyond specification or if surface defects are visible.
• Clean with solvents compatible with stator materials and vacuum systems; avoid aggressive chemicals that can leave residues or attack coatings.
• Keep a record of service intervals—timely replacement reduces the risk of rotor contact and catastrophic failure.

Performance impact

A correctly fitted Screw Stator 3000 restores the internal geometry and sealing performance that directly influence ultimate pressure, throughput and rotor stability. Using original-equivalent stators reduces vibration, lowers wear on rotor and bearings, and helps the pump meet its rated pumping curve reliably after a rebuild.

Quality assurance, packaging & supply

Each stator is inspected for dimensional conformity and cleanliness before shipment and is double-packed to prevent contamination or mechanical damage. For traceability, supplier batch information and inspection records can be provided on request. Warranty and return terms follow the supplier's standard commercial policies; contact the parts provider for details.

Ordering & technical support

To order genuine-equivalent Screw Stator 3000 parts or to request a compatibility check, contact your pump parts specialist with the pump model and serial number. For more information about spare parts and repair services you can visit our product pages:

• Shimadzu spare parts — product listings and compatibility information.
• Screw Stator 3000 details — technical and ordering data.
• Molecular pump repair parts — service kits and complementary components.
• Vacuum pump components — related components, bearings, seals and accessories.

Image assets and dimensional drawings are available on request—please provide your pump model and serial number so we can supply the correct illustration and any CAD/fitment drawings required for workshop planning.

Note: For safety and optimal results, replacement and rebuild operations should be performed by trained service personnel following the pump manufacturer's procedures. If you need assistance with diagnostics, installation or sourcing compatible consumables, contact our technical sales team.
