ASM Alcatel Series Helium Leak Detector Pre-Pump Oil Mist Filter - The "Guardian" of Vacuum Systems

This article provides an in-depth analysis of the core technological advantages of the ASM Alcatel Series Pre-Pump Oil Mist Filter, application cases in various scenarios, and answers to frequently asked questions from users. It offers customized vacuum system protection strategies for the semiconductor, photovoltaic, and research fields.

Product Core Advantages

Military-grade Filtration Performance

Utilizing gradient glass fiber composite filter material to achieve full interception of particulates above 0.3μm, with an oil mist filtration efficiency of ≥99.5%, surpassing the ISO 8573-1 Class 1 standard.

Smart Lifespan Monitoring Design

Equipped with a built-in pressure differential indicator that provides real-time display of filter saturation status (0.5bar threshold alarm), preventing misjudgment of replacement cycles.

Full-Condition Adaptability

Temperature Adaptability: Stable operation in extreme environments ranging from -30℃ to +120℃.

Pressure Compatibility: Maintains high-efficiency filtration within a wide pressure differential range of 0.01 to 3bar.

Modular Rapid Maintenance

Patented snap-fit installation structure allows for tool-free replacement, reducing average maintenance time to just 5 minutes.

Industry Solutions

Case 1: Photovoltaic Cell Panel Sealing Test

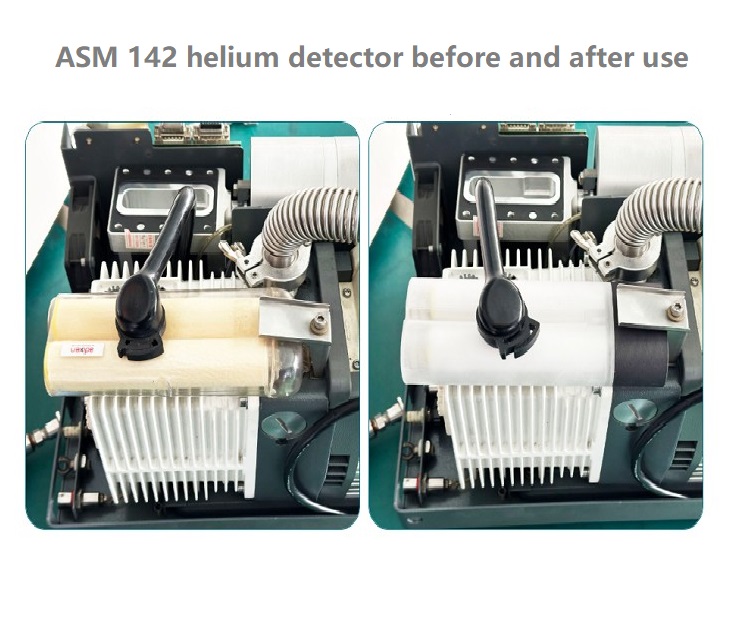

User Pain Point: A TOPCon battery production line experienced a 30% increase in false alarm rates of ASM340W due to oil mist backflow.

Solution: Installed a customized DN25KF interface filter.

Implementation Results:

Device false alarm rate reduced to <0.5%.

Pre-pump maintenance cycle extended from 2 weeks to 3 months.

Annual maintenance cost savings of 280,000 yuan.

Case 2: Spacecraft Fuel Tank Leak Detection

Special Requirement: Stable operation in a -40℃ low-temperature environment.

Technical Customization:

Employed special low-temperature sealing materials.

Added an electric heating anti-freeze module.

Verification Data:

Continuous 500-hour -40℃ test with pressure drop fluctuation <5%.

Passed NASA-STD-8719.14 certification.

Six-Step Installation Optimization Process

Pre-cooling Treatment: Freeze new filter elements at -20℃ for 12 hours before use (only for low-temperature models).

System Depressurization: Ensure the vacuum returns to atmospheric pressure.

Sealing Surface Treatment: Clean with IPA and apply specialized vacuum grease.

Direction Alignment: Strictly align the arrow mark with the airflow direction.

Torque Control: Install using an 8N·m torque wrench.

Start-up Inspection: Run the system unloaded for 30 minutes to monitor the pressure drop curve.

Top Ten In-Depth Technical Q&A

1、Can the filter be used in conjunction with a molecular pump?

Answer: A buffer chamber needs to be installed. It is recommended to consult an engineer for a customized three-stage filtration solution.

2、How to handle conditions with corrosive vapors?

Answer: A PTFE-coated filter material version can be selected, which enhances acid and alkali resistance by 10 times.

3、How does frequent start-stop affect the lifespan?

Answer: Each start-stop cycle is equivalent to 5 hours of continuous operation. It is recommended to limit start-stop cycles to ≤3 times per day.

4、What are the considerations for vacuum grease selection?

Answer: Apiezon N-type grease is recommended to avoid secondary contamination caused by silicone-based greases.

5、Is remote monitoring possible?

Answer: The smart version supports 4-20mA signal output and is compatible with SCADA systems.

6、Is it suitable for nuclear industry environments?

Answer: A special version has passed the NQA-1 certification and has been used in the ITER project.

7、How is oil mist recycling handled?

Answer: A condensation recycling device can be provided to achieve 98% waste oil regeneration and utilization.

8、How to verify the filtration effect?

Answer: ISO 8573 certified testing services are provided to generate visual particle distribution charts.

9、Does it affect the sensitivity of helium leak detection?

Answer: Tests have shown no attenuation of sensitivity at the 1.0E-12 mbar·L/s level.

10、How long is the customization cycle?

Answer: Standard models take 3 days, while non-standard designs take 7-15 days (including performance verification).
