NEV2 060/061 /070/071evolution Liquid Ring Vacuum Pump in china

NEV2 060/061 /070/071evolution Liquid Ring Vacuum Pump for

NEV series vacuum pumps in monoblock design,50Hz, IE3, IP55

NEV series vacuum pumps in monoblock design,60Hz, IE3,IP55

Medical, electronic, chemical, pharmaceutical, food, beverage, environmental protection and other industries and hydrocarbon cleaning, plastic extrusion, packaging machinery and other application scenarios.

Product Feature

● Higher vacuum, lower water consumption and better performance

● Patented compact design, fewer parts, smaller size.

● 100% oil-free design.

● Special Lobe purge interface design.

● Unique external open inspection window.

● A variety of materials are available.

● A variety of vacuum pump accessories are available, including cavitation protection valves, constant flow valves for operating liquid and suction and quickconnections on suction and discharge

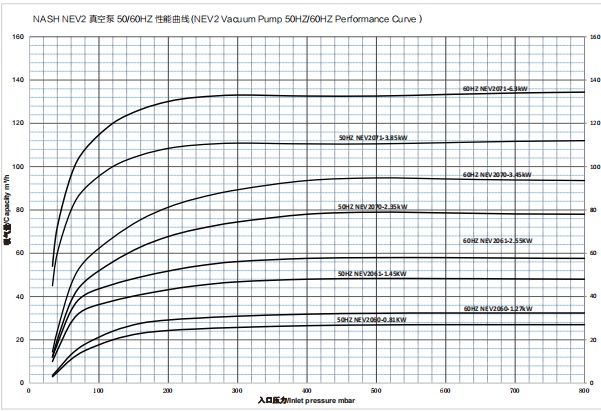

 Performance curve

Applications

Water-cooled liquid ring vacuum pumps are widely used in many industrial fields, including but not limited to:

· Vacuum forming : Vacuum forming process used for plastics and other materials.

· Vacuum degassing : used to remove gases from liquids in industrial production.

· Medical Vacuum Systems : Vacuum support systems for medical equipment.

· Vacuum hot pressing machine : used for hot pressing of composite materials.

· Vacuum Casting : Provides an efficient vacuum environment during the casting process.

· Vacuum vulcanizing hot press : used for vulcanizing rubber and related products.

· Vacuum packaging : a packaging process used in food, medicine and other industries.

· Vacuum drying : suitable for production processes that require moisture removal, such as food drying, wood drying, etc.

· Vacuum adsorption handling : used to transport and fix materials.

· Vacuum impregnation : used for vacuum impregnation treatment of materials.
