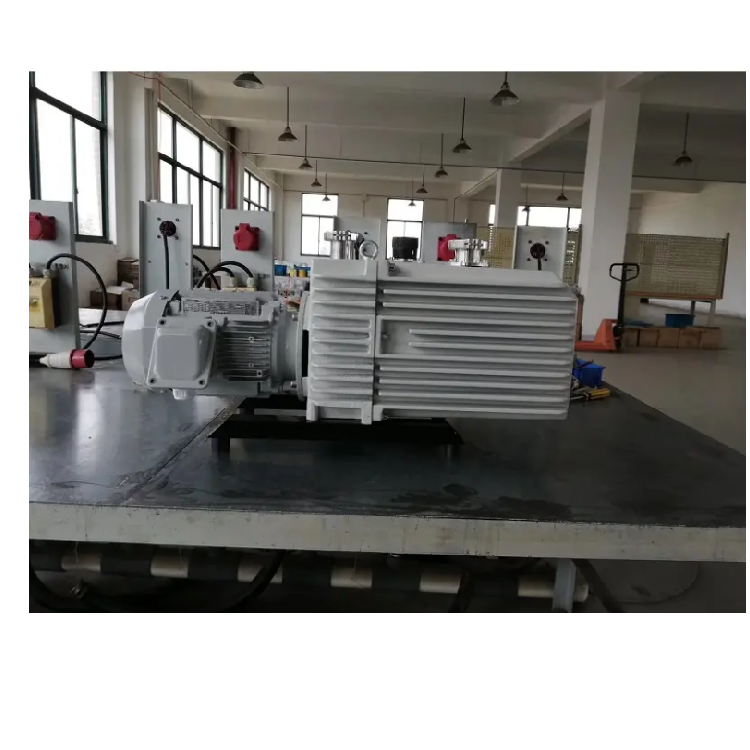

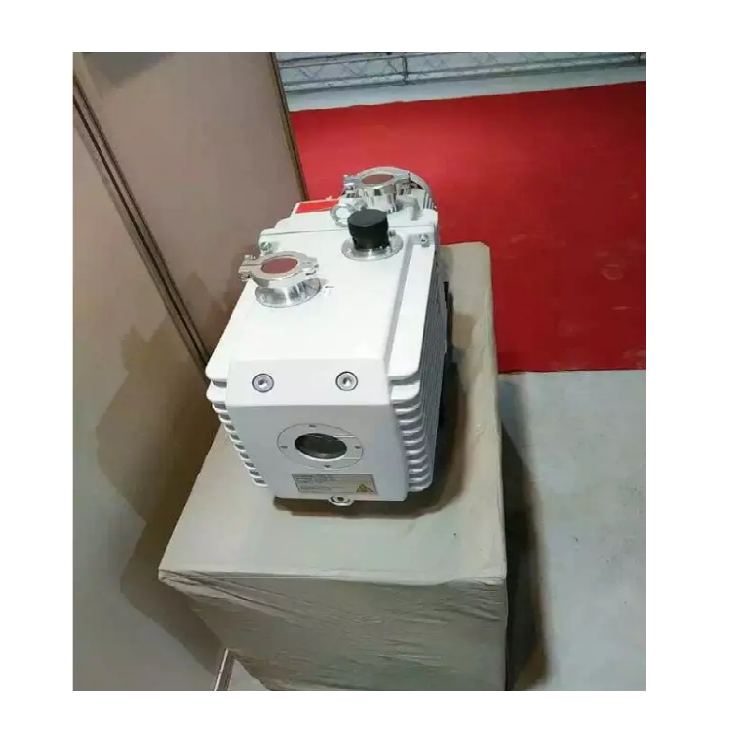

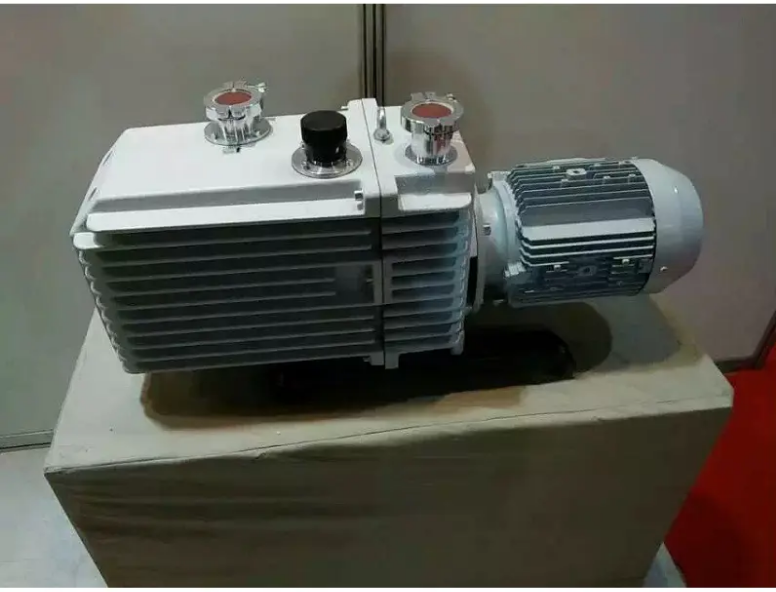

Technical parameters of 2tx-8 series double stage rotary vane vacuum pump
Product features
1. It can operate from one atmosphere to the ultimate pressure
Can be used from atmospheric pressure to ultimate pressure.
2. Under low vacuum pressure, good air extraction speed can still be maintained
low vacuum pressure, it can still maintain a good pumping speed。
3. Low noise and vibration
Low noise, low vibration
4. The built-in outlet filter element can achieve 99.9% oil and gas filtration effect
Built-in outlet filter, up to 99.9% oil and gas filtration effect
5. Super function of eliminating water vapor
Super strong function of removing water vapor
6. Air cooling, economical and convenient < water cooling can also be selected
Air cooling, economical and convenient
7. The air inlet is equipped with a check valve to avoid the reverse flow of vacuum oil when the pump stops
The air inlet is equipped with a check valve to avoid the reverse flow of the vacuum oil when the pump stops.
8. Compact structure, small volume and space saving
Compact structure, small size and space saving
9. It can be used together with various accessories, so it can meet the needs of various applications
It can be used with various accessories, so it can meet the needs of various applications
10. Pumping speed: 8m3/h ~ 65m3/h
Pumping speed: 8m3/h~65m3/h
11. Ultimate partial pressure: 10-4mbar c/s
Limit partial pressure: 10-4mbar c/s
12. Built in anti oil return valve
Built-in anti-return valve
Technical parameters of 2tx series double stage vane pump
Model |
Ultimate partial pressure (PA) |
Pumping speed (M³/H) |
Pumping speed (l/s) |
Motor power (kw) |
Inlet and outlet diameters(mm) |
Weight (kg) |
|
4X10-4 |
|
|
|
|
|
2TX-18 |
18 |
4 |
0.55 |
25 |
31 |
Application of 2tx series double stage rotary vane vacuum pump
The rotary vane vacuum pump series is suitable for pumping air and other general gases. When using the gas ballast, the pump can pump a small amount of condensable gases (such as steam). When pumping gases with high oxygen content, explosive, corrosive to ferrous metals and chemical reaction to vacuum oil, additional devices should be added. This type of pump can be used alone, and can also be used as the front stage of diffusion pump, roots pump, molecular pump and other high vacuum pumps. The pump is widely used in vacuum coating, vacuum heat treatment, electronics, semiconductors, lighting, food packaging, refrigeration and other industries.
2tx outline installation dimension table:
