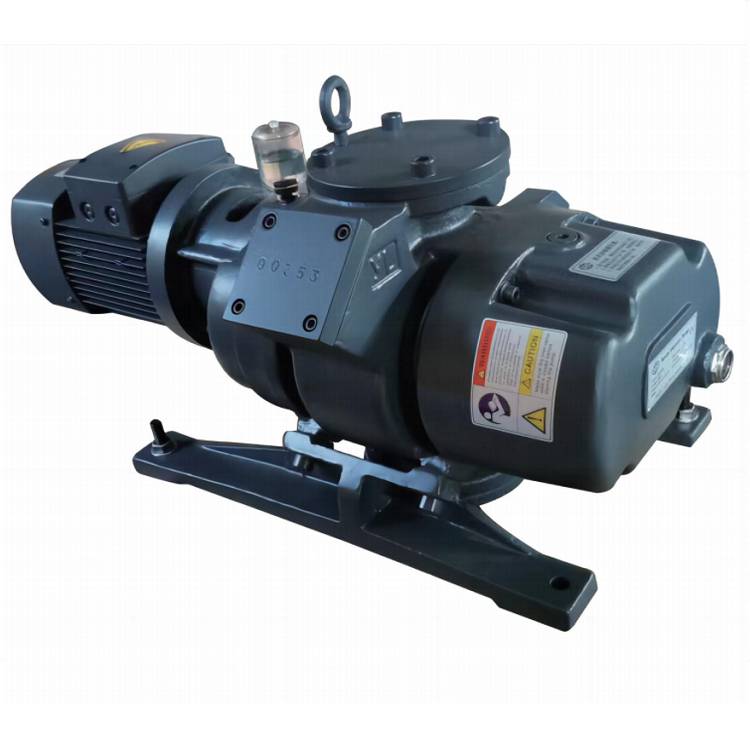

Discover the TRP-250 Air-Cooled Roots Vacuum Pump – a high-efficiency vacuum solution with 253 m³/h pumping speed, 0.05 Pa ultimate pressure, and 1.5 kW motor power. Learn its technical specs, working principle, key features, and applications in food, chemical, pharmaceutical, and textile industries.

1.The TRP-250 Air-Cooled Roots Vacuum Pump delivers oil-free, low-noise, and energy-efficient performance for industrial vacuum systems. This guide covers its technical parameters, operation mechanism, benefits (compact design, fast startup, special gas handling), and FAQs to help you choose the best vacuum solution.

2. Working Principle

How the TRP-250 Roots Pump Works

• Dual Rotor Design: Two figure-8-shaped rotors rotate in opposite directions, creating a vacuum by trapping and expelling gas.

• Zero Contact Operation: Rotors maintain a precise gap, eliminating friction and oil contamination.

• Bypass Valve Protection: Automatically opens at high pressure differences (≥8000 Pa) to prevent overload.

• Requires a Backing Pump: Must be paired with a rotary vane or liquid ring pump for optimal performance.

 Key Technical Specifications

3. Key Product Features

✅ Oil-Free & Clean Operation – No lubrication needed, ideal for food and pharmaceutical industries.
✅ Compact & Space-Saving – Supports horizontal/vertical installation.
✅ Quiet & Stable (63 dB(A)) – Precision-balanced rotors minimize vibration.
✅ Handles Condensable Gases – Suitable for chemical and industrial applications.
✅ Fast Startup – Reaches maximum vacuum in minutes.
✅ Energy-Efficient (1.5 kW Motor) – Low power consumption reduces costs.
✅ Built-in Safety – Bypass valve prevents damage from pressure surges.

4. Industrial Applications

• Food Processing: Vacuum drying, freezing, and packaging.

• Chemical Industry: Vacuum distillation, evaporation, and concentration.

• Pharmaceuticals: Sterile coating and heat treatment.

• Textiles: Vacuum impregnation and dust removal.

• Electronics & Packaging: Precision manufacturing and sealing.

5. Case Study: TRP-250 in Food Drying

A food processing plant integrated the TRP-250 into its vacuum drying line, achieving:
✔ Faster drying cycles (due to rapid vacuum generation).
✔ No oil contamination (critical for food safety).
✔ Quiet operation (63 dB) improving worker comfort.

6. Frequently Asked Questions (FAQs)

Q1: How often should I maintain the TRP-250?
A: Every 3-6 months under normal conditions; 2-3 months in harsh environments.

Q2: Why is my pump noisy?
A: Check for worn bearings, rotor misalignment, or foreign debris.

Q3: Can I use a different backing pump?
A: Yes, but ensure compatible pressure and flow rates.

Q4: Can two TRP-250 pumps be connected?
A: Yes, in series for higher vacuum or parallel for increased flow.

Q5: Does it work in cold environments?
A: Yes, but pre-warm the pump or use low-temperature lubricants.

Q6: What if efficiency drops suddenly?
A: Inspect filters, seals, and motor condition.

Q7: How to maximize lifespan?
A: Follow maintenance schedules and avoid overloading.

Q8: What gases can it handle?
A: Air, vapors, and some condensable gases (check compatibility).

Q9: What’s the max flow rate?
A: 253 m³/h (adjustable based on system setup).

Q10: What’s the highest vacuum achievable?
A: 0.05 Pa (with proper backing pump support).

Conclusion

The TRP-250 Air-Cooled Roots Vacuum Pump is a reliable, energy-efficient, and low-maintenance solution for industries requiring high-speed, oil-free vacuum generation. Its compact design, quiet operation, and safety features make it ideal for food, chemical, pharmaceutical, and textile applications.
