This article details the technical specifications, performance characteristics, FAQs, and maintenance recommendations for KYKY FF40/25 grease-lubricated turbo molecular vacuum pump bearings, providing comprehensive bearing solutions for vacuum pump users.

The specialized upper/lower bearings for KYKY FF40/25 grease-lubricated turbo molecular vacuum pumps feature high precision, high-temperature resistance, and extended service life. This article provides detailed technical parameter tables, 10 frequently asked questions, and professional maintenance advice to help users optimize vacuum pump performance and extend service life.

KYKY FF40/25 bearings, turbo molecular pump bearings, vacuum pump upper/lower bearings, grease-lubricated bearings, molecular pump bearing replacement, vacuum pump maintenance, high-precision bearings, high-temperature resistant bearings, vacuum technology components, molecular pump repair

Technical Specifications of KYKY FF40/25 Grease-Lubricated Turbo Molecular Vacuum Pump Bearings

Product Overview

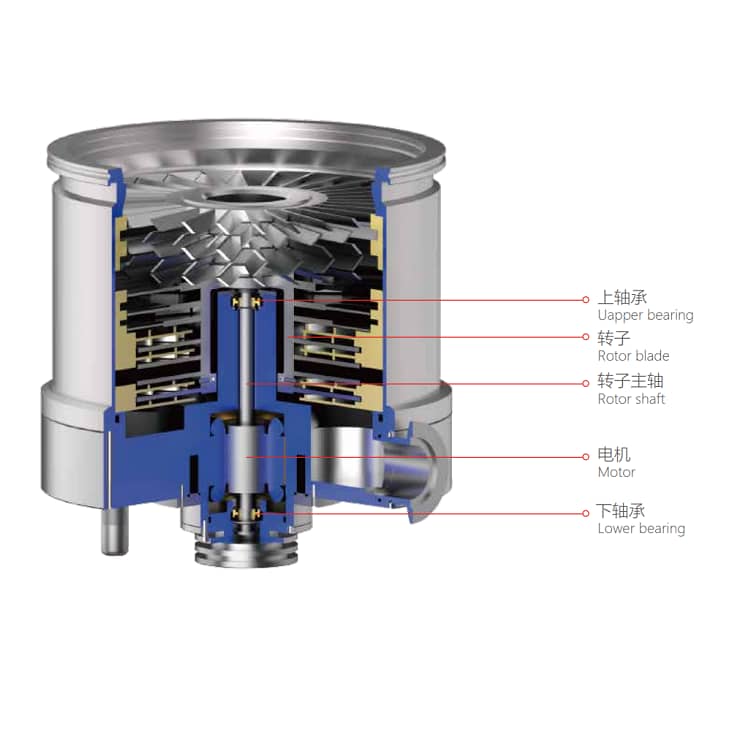

The specialized upper/lower bearings for KYKY FF40/25 grease-lubricated turbo molecular vacuum pumps are core components designed specifically for high-precision vacuum environments. Utilizing special materials and lubrication technology, they ensure stable performance under high-speed rotation and extreme temperature conditions, significantly extending the vacuum pump's service life.

Application Case

A semiconductor manufacturer experienced vacuum level degradation after 3 years of using KYKY FF40/25 turbo molecular pumps. Inspection revealed severe upper bearing wear. After replacing with our specialized grease-lubricated bearings:

Vacuum level restored to 5×10⁻⁶Pa

Vibration reduced by 40%

No performance degradation after 6 months of continuous operation

Expected service life extended by over 50%

Frequently Asked Questions (FAQ)

Q1: How to determine when KYKY FF40/25 vacuum pump bearings need replacement?
A: Consider replacement when these symptoms appear: significant vacuum level drop, increased abnormal noise, excessive vibration, abnormal motor current, or abnormal pump temperature rise.

Q2: What is the recommended replacement interval for these bearings?
A: Under normal conditions, replace every 2-3 years or after 20,000 operating hours, adjusted according to actual working conditions.

Q3: What precautions should be taken when installing new bearings?
A: Maintain a dust-free environment; use specialized tools; avoid direct impact; check shaft and housing dimensional accuracy before installation; tighten to specified torque.

Q4: Why choose grease lubrication over oil lubrication?
A: Grease lubrication is more suitable for high-speed, maintenance-free applications, effectively preventing lubricant evaporation from contaminating the vacuum environment, with longer maintenance intervals.

Q5: What to do if bearing operating temperature is too high?
A: Check lubrication status; confirm cooling system operation; investigate potential overload; if high temperature persists, consider switching to special grease with higher temperature resistance.

Q6: How to store spare bearings?
A: Keep in original packaging, stored in dry, dust-free environment at 10-25℃ with relative humidity below 60%, avoiding vibration and strong magnetic fields.

Q7: Do bearings require run-in after installation?
A: Recommend 48-hour low-speed run-in (60% of rated speed), then gradually increase to operating speed, which helps extend service life.

Q8: Can grease be added manually?
A: Not recommended. These bearings use sealed design and special grease. Manual addition may cause contamination or grease incompatibility. Replace the entire bearing unit instead.

Q9: What are common causes of bearing failure?
A: Main causes include: lubrication failure (38%), contamination (25%), improper installation (20%), overload (12%), and other reasons (5%).

Q10: How to select replacement bearings?
A: Must ensure all technical parameters match exactly. Recommend using OEM specified models. Alternatives must meet all requirements for dimensional accuracy, material, lubrication method, and speed rating.

Maintenance Recommendations

Inspect bearing operating condition every 6 months

Establish vibration and temperature monitoring records

Maintain vacuum system cleanliness to prevent particle contamination

Avoid frequent start-stop cycles and overload operation

Use OEM specified replacement parts

Conclusion

The KYKY FF40/25 grease-lubricated turbo molecular vacuum pump bearings are critical components ensuring equipment performance. Proper selection, installation, and maintenance can significantly improve vacuum pump reliability and reduce maintenance costs. For professional technical support, please contact our engineering team.
